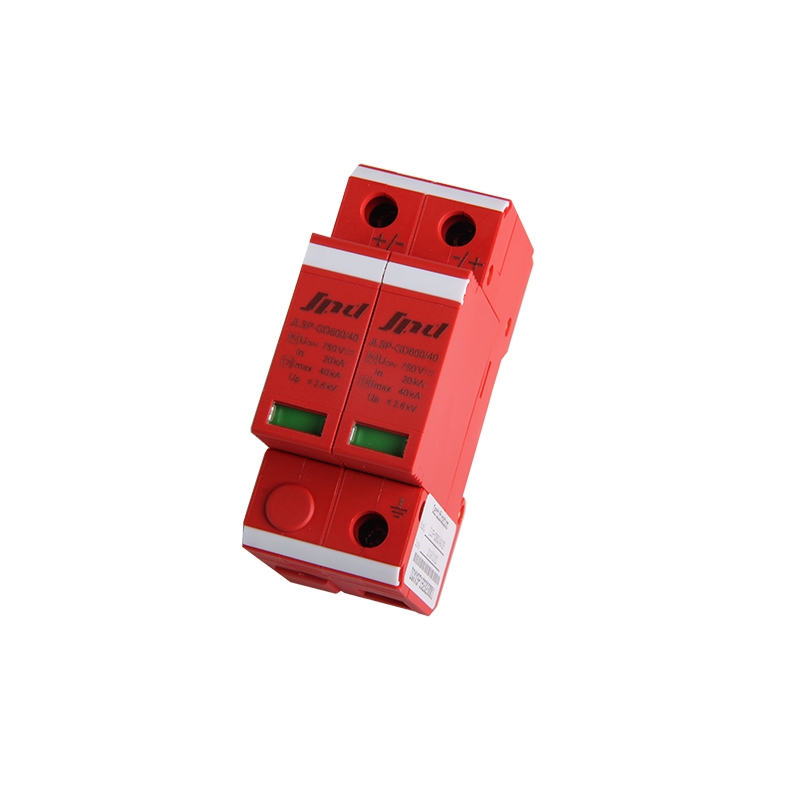

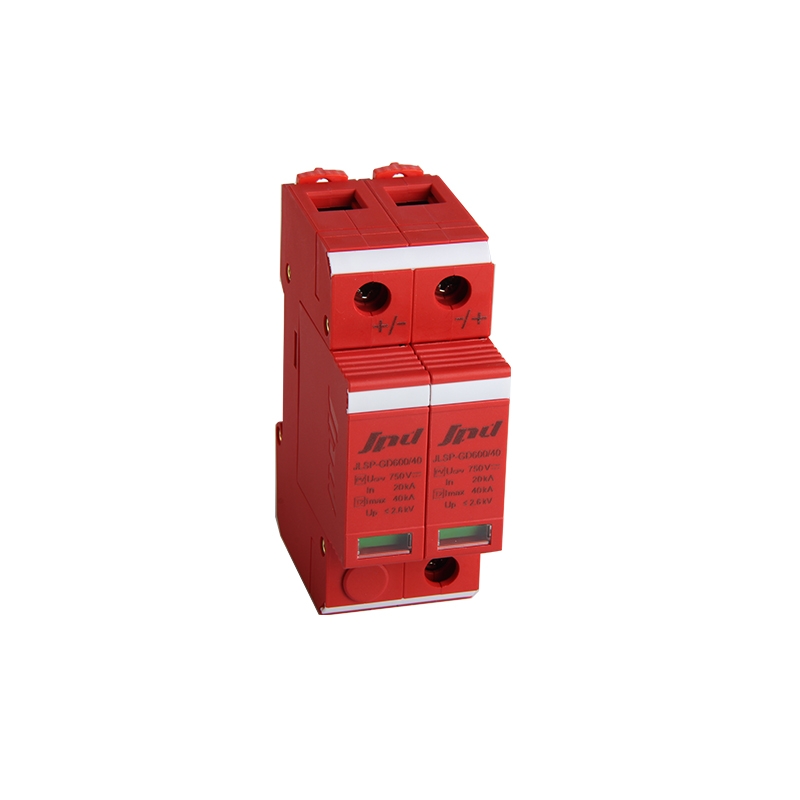

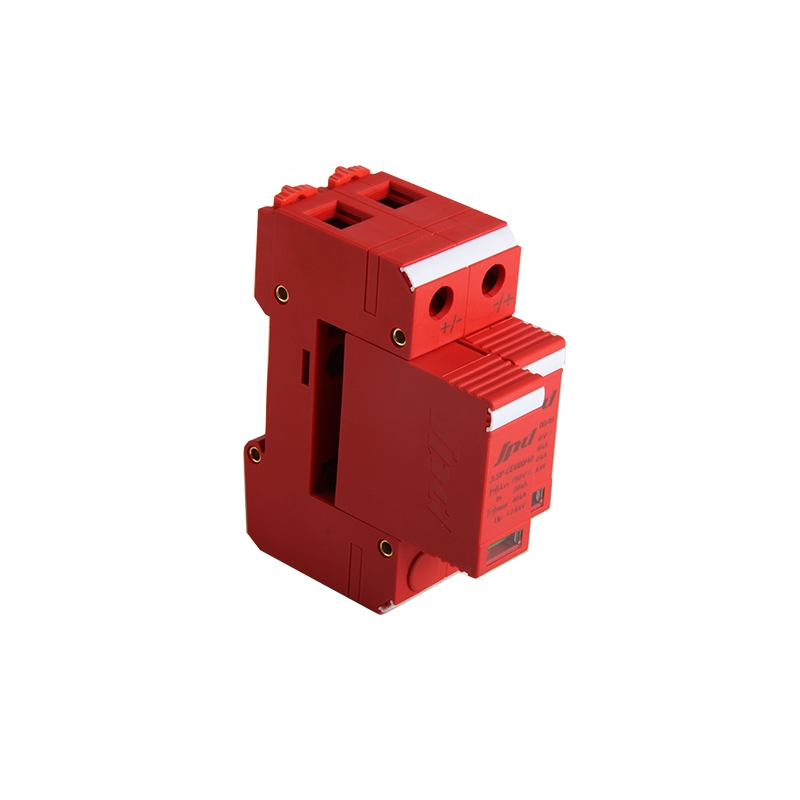

Type 2 single phase surge protection device dc SPD 600V

Type 2 surge protector 600v SPD, single phase surge protection device

In:20kA; Imax: 40kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM acceptable

SPD factory, professional manufacturer


  • Item NO.:

    JLSP-GD600/40/2P
  • Order(MOQ):

    10
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Shanghai
  • Product Detail

Type 2 DC surge protection device 600V solar SPD

Photovoltaic surge protection device is avalibale for600V, 800V, 1000Vand1500V dc power system of phototvoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.

PV standard IEC 61643-31

Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-GD600/40
IEC Class Class II
DC Network Un(50/60Hz)(V) 500, 600
Max.continuous operating voltage Uc (V) 670
Nominal discharge current (8/20μs) In (kA) 20
Max. discharge current (8/20μs) Imax (kA) 40
Voltage protection level Up (kV) ≤2.6
Max. backup fuse(A) 100(gG)
Response time tA ≤25ns
Capacity of withstand short circuit 25kA
Operating temperature -40℃~+85℃
Relative humidity ≤95%(25℃)
Max.cross-sectional area 25mm2  multi-strand cord
Dimensions (1P) (W×L×H)(mm)
18×90×62
Mounting DIN Rail 35mm
Protection rating IP 20
Housing material PBT
Flame retardant rating UL94 V-0
Capacity of remote signaling contact 250VAC/0.5A   30VDC/3A
Max.cross-sectional area of wire for remote signaling contact
 1.5mm²multi-strand cord / single cord
Status indicator Normal:green / malfunction:red
Standards compliance EN61643-11,IEC61643-11,GB/T 18802.1


Hot tags:  dc surge protection device for solar projects, dc surge protector for PV systems, dc spd 600V for solar inverter, dc spd 500V for photovaltic projects, single phase dc spd, type 2 surge protection device, dc spd, dc surge protector device, surge arrester
