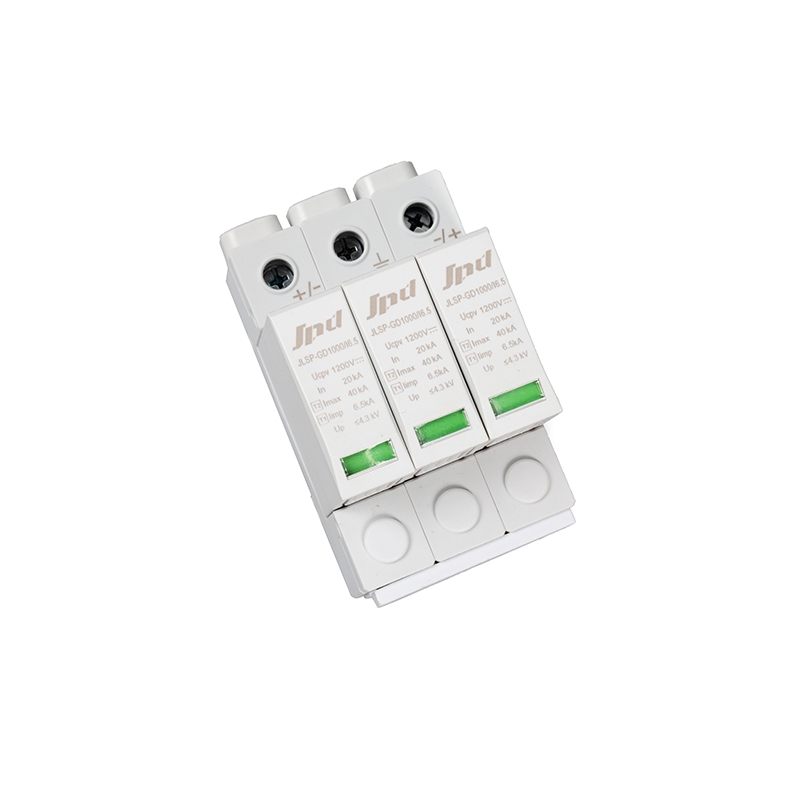

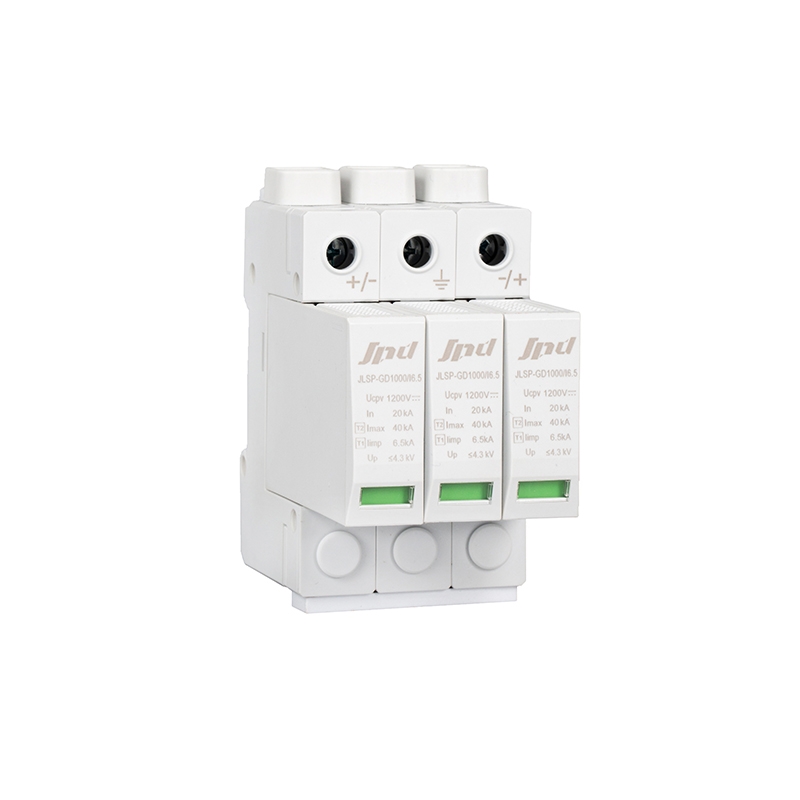

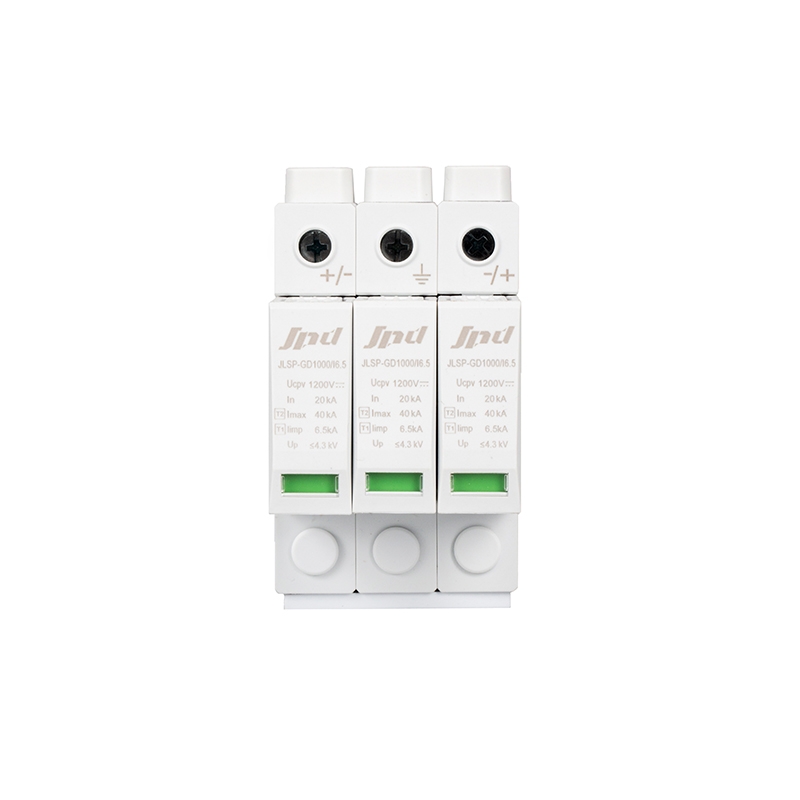

Jinli type 1+2 solar surge protector 1000V DC SPD

Type 1+2 surge protector 1000V SPD, 3poles surge arrester, solar spd

Iimp: 6.5kA; In:20kA; Imax: 40kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

UL, TUV, CE, RoHs

OEM acceptable

Sungrow, Goodwe supplier

  • Item NO.:

    JLSP-GD1000/I6.5/3P
  • Order(MOQ):

    10
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shanghai
  • Product Detail

Type 1+2 solar surge protection device, 1000V DC SPD

Photovoltaic surge protection device is avalibale for 600V, 800V, 1000V and 1500V dc power system of phototvoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.


PV standard IEC 61643-31

Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications


Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-GD1000/I6.5/3P
Descrpition Type 2 DC surge protector-3poles
Network 1000,1100V
Max. AC operating voltage (Uc) 1200V
Lightning implush current Iimp (kA) 6.5KA
Nominal discharge current In(kA) 20kA
Max. Discharge current Imax (kA) 40kA
Protection level Up (kV) ≦4.3kV
Dimensions 36*90*62MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11

dc surge protection device for solar panel

dc surge protection devicesolar surge protective device
