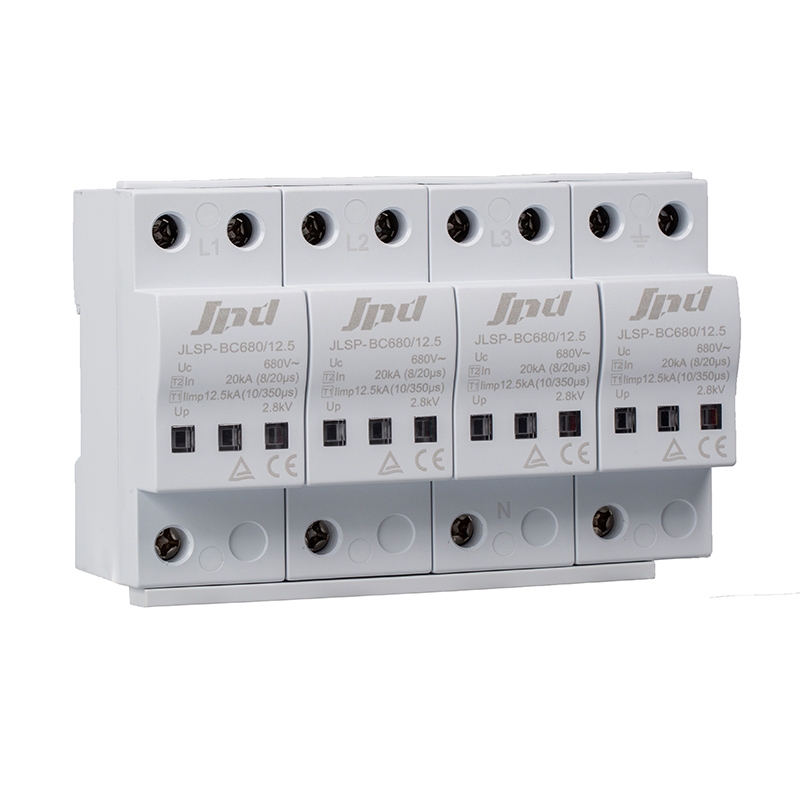

JLSP-BC680/12.5 surge lightning protection arrester

AC surge protective device 460, 277/480, 400/690V
AC network Un: 277V-690V         Iimp(10/350us): 12.5KA

RoHS, IEC, UL certificates         Phase 1P, 2P, 3P, 4P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration


  • Item NO.:

    JLSP-BC680/12.5
  • Order(MOQ):

    1
  • Product Origin:

    CN
  • Color:

    red
  • Product Detail

Type 2 type 1 AC SPD 1P, 2P, 3P, 4P 12.5KA 690V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


IEC Class: class I + class II

Lightning impulse current (10/350us) Iimp (KA): 12.5KA


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency


Model

JLSP-BC680/12.5/1P, 2P, 3P, 4P

Descrpition

Type 1, 2 AC surge protector

Network

460, 277/480, 400/690V (TN/TT/IT)

Max. AC operating voltage (Uc)

680V

Nominal discharge current In(kA)

12.5kA

Iimp (10/350us) (kA)

12.5kA

Protection level Up (kV)

≦2.8kV

Dimensions

72*90*62MM

Protection rating

IP 20

Response time tA (ns)

≦25

Oeprating temperature

-40/+85℃

Mounting

DIN Rail 35mm

Housing material

Thermoplastic UL94-V0

Standards compliance

IEC64643-11, GB/T18802.11

ac surge protective devicesurge protective deviceHot tag: surge protector for lightning strike ac dc pv system phase 1,2,3,4
            power surge protection 175V 275V 600V 800V 1000V signal surge protection arrester
            spd compliance with IEC, UL, GB/T
            solar surge protective device 600v 800v 1000v 1500v

            IEC class I+II, 10/350us

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
power spd ac
JLSP-BC/25 surge lightning protection arrester
AC surge protective device 230V 400V Lightning impluse current (10/350us) 25KA AC network Un: 230/400V         Iimp(10/350us): 25KA       In(8/20us): 50KA RoHS, IEC, UL certificates         Phase 1P, 2P, 3P, 4P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
spd type 1
Jinli type 1+2 ac surge protection devices 680V
Type 1+2 AC power surge protector, with CE, TUV certificate Iimp=12.5kA, Uc=680V Low voltage Up Internal disconnection, statue indicator, and remote signaling IEC 61643-11 OEM acceptable
ac surge protection device
Jinli single phase surge protection device AC 275V SPD
AC 275V Surge protector In:20kA Imax: 40kA Low voltage Up Internal disconnection, statue indicator, and remote signaling IEC 61643-11 OEM acceptable
spd ac
surge lightning protection arrester JLSP-BC680/12.5
AC surge protective device 460, 277/480, 400/690V AC network Un: 277V-690V         Iimp(10/350us): 12.5KA RoHS, IEC, UL certificates         Phase 1P, 2P, 3P, 4P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
spd surge protection
Jinli power surge protective device ac spd 40ka pole 2
AC surge protective device 275V MAX Vac: 275V         IMAX: 40KA RoHS, IEC, UL certificates       Phase 2P DIN Rail 35mm Easy to be replaced with pluggable design Packing with inner box to prevent transport vibration
Surge Device Protection

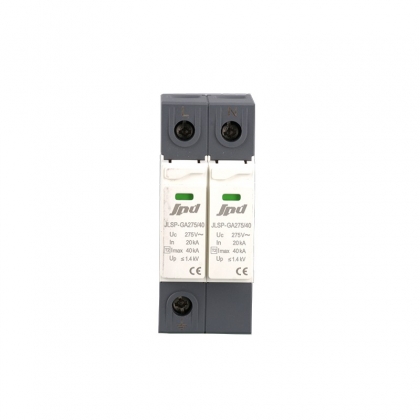

Jinli single phase surge protection device AC SPD JLSP-GA275/40/2P
