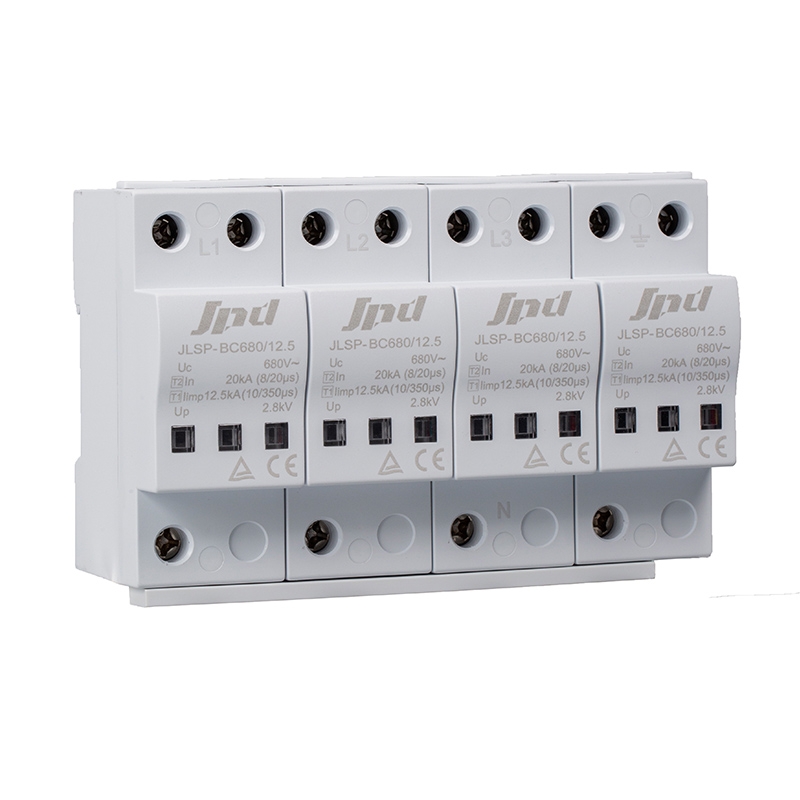

surge lightning protection arrester JLSP-BC680/12.5

AC surge protective device 460, 277/480, 400/690V
AC network Un: 277V-690V         Iimp(10/350us): 12.5KA

RoHS, IEC, UL certificates         Phase 1P, 2P, 3P, 4P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration


  • Item NO.:

    JLSP-BC680/12.5
  • Order(MOQ):

    1
  • Product Origin:

    CN
  • Color:

    red
  • Product Detail

Type 2 type 1 AC SPD 1P, 2P, 3P, 4P 12.5KA 690V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


IEC Class: class I + class II

Lightning impulse current (10/350us) Iimp (KA): 12.5KA


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency


Model

JLSP-BC680/12.5/1P, 2P, 3P, 4P

Descrpition

Type 1, 2 AC surge protector

Network

460, 277/480, 400/690V (TN/TT/IT)

Max. AC operating voltage (Uc)

680V

Nominal discharge current In(kA)

12.5kA

Iimp (10/350us) (kA)

12.5kA

Protection level Up (kV)

≦2.8kV

Dimensions

72*90*62MM

Protection rating

IP 20

Response time tA (ns)

≦25

Oeprating temperature

-40/+85℃

Mounting

DIN Rail 35mm

Housing material

Thermoplastic UL94-V0

Standards compliance

IEC64643-11, GB/T18802.11

ac surge protective devicesurge protective deviceHot tag: surge protector for lightning strike ac dc pv system phase 1,2,3,4
            power surge protection 175V 275V 600V 800V 1000V signal surge protection arrester
            spd compliance with IEC, UL, GB/T
            solar surge protective device 600v 800v 1000v 1500v

            IEC class I+II, 10/350us
