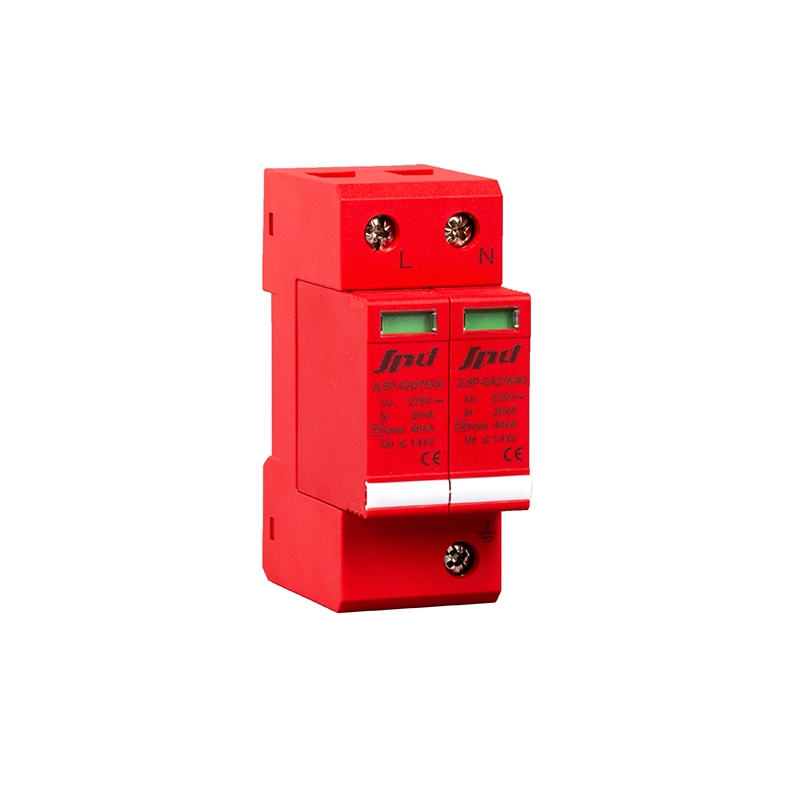

Jinli power surge protective device ac spd 40ka pole 2

AC surge protective device 275V
MAX Vac: 275V IMAX: 40KA

RoHS, IEC, UL certificates Phase 2P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration

Item NO.:
JLSP-GA275/40/2P
Order(MOQ):
1
Product Origin:
CN
Color:
red

Inquire now

Product Detail

Type 2 AC SPD 2P 40kA 230V 275V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model	JLSP-GA275/40/2P
Descrpition	Type 2 AC surge protector-2poles
Network	202,230,102/208V (TN/TT/IT)
Max. AC operating voltage (Uc)	275V
Nominal discharge current In(kA)	20kA
Max. Discharge current Imax (kA)	40kA
Protection level Up (kV)	≦1.4kV
Dimensions	729062MM
Protection rating	IP 20
Response time tA (ns)	≦25
Oeprating temperature	-40/+85℃
Mounting	DIN Rail 35mm
Housing material	Thermoplastic UL94-V0
Standards compliance	IEC64643-11, GB/T18802.11

solar surge protector surge protective device

Hot tag: surge protector for lightning strike ac dc pv system phase 1,2,3,4
power surge protection 175V 275V 600V 800V 1000V signal surge protection arrester
spd compliance with IEC, UL, GB/T
solar surge protective device 600v 800v 1000v 1500v
