JLSP-VABFM5 Surge Protection Device for Video Data Transmission

Signal Surge Protective Device

BNC Interface

For Video Data Transmission

OEM/ODM acceptable

  • Item NO.:

    JLSP-VABFM5
  • Product Detail

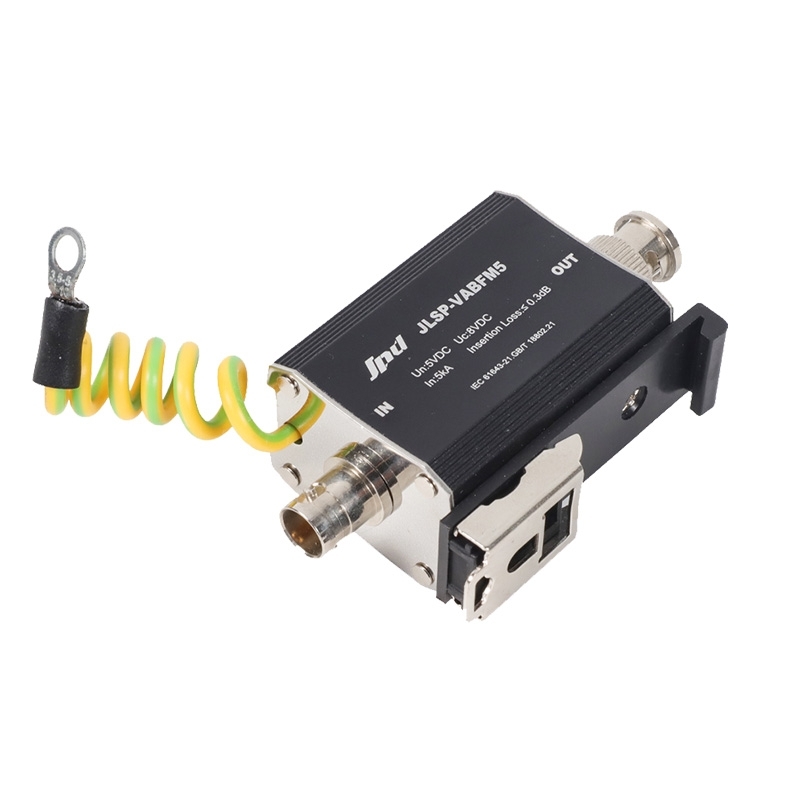

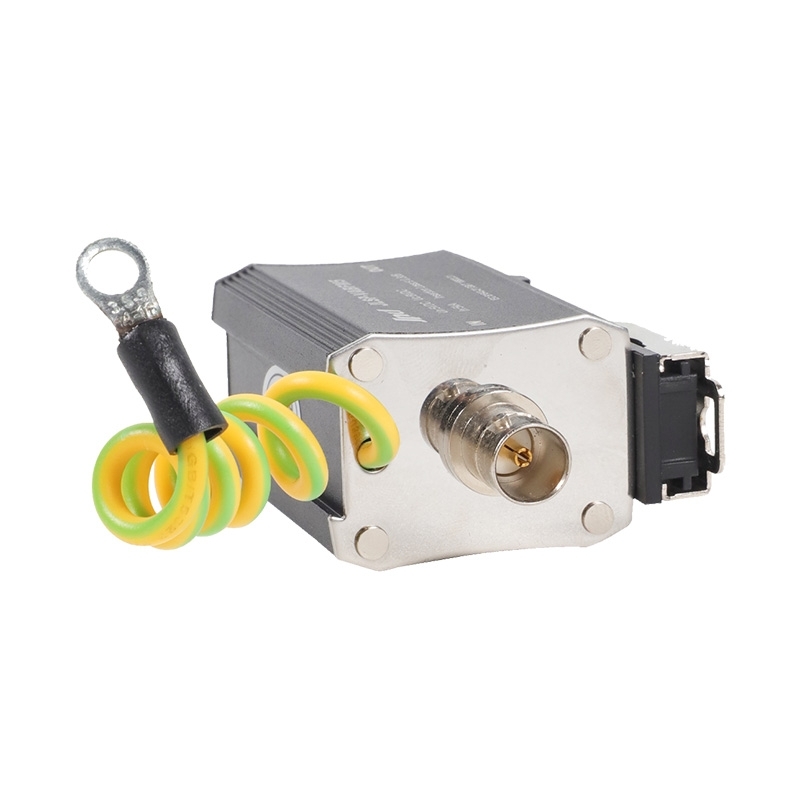

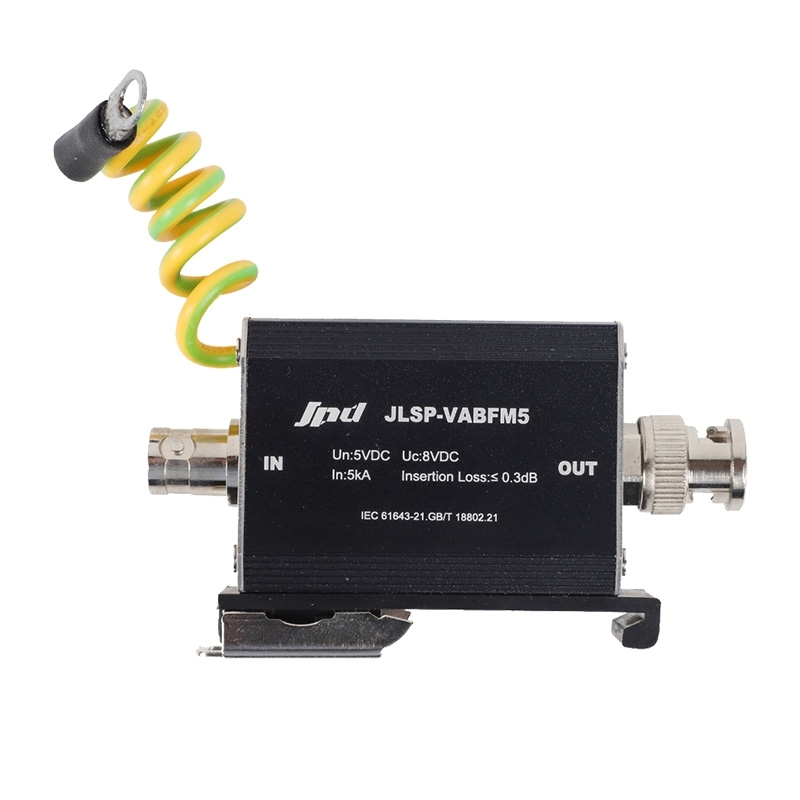

JLSP-VABFM5 Surge Protection Device for Video Data Transmission

  It is suitable for coaxial communication equipment such as cable television, public television, instruments, monitoring systems and video-on-demand systems, and is dedicated to lightning and surge protection at the equipment end.


Features:

  * Low insertion loss and low voltage protection level

  * Fast response: action with nanosecond

  * High rate transmission

  * Large discharge current capacity

  * DB9 interface, easy mounting

  * Protection for data line with D-SUB interface


Model

Nominal voltage Un(V)

Max.continuous operatingvoltage Uc(Vdc)

Nominal discharge current In(kA)

Protection level Up(line-line)(V)(B2:4kV)

Protection level Up(line-PE)(V)(B2:4kV)

Frequency(MHz)

Impedance

Insertion loss(dB)

JLSP-VABFM5

5

8

5

≦30

≦600

10

50

≦0.3

spd lightning protection

spd lightning protection

spd lightning protection


Hot tags:Signal Surge Protective Device, SPD with DB9, B9 Connection SPD, Surge Protecition Device, Surge Protector
