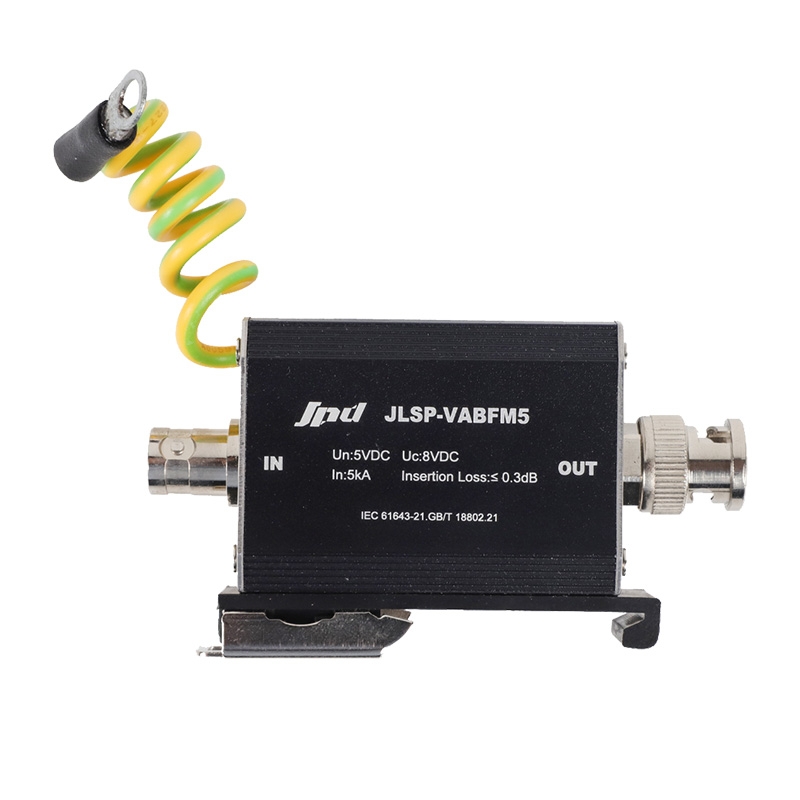

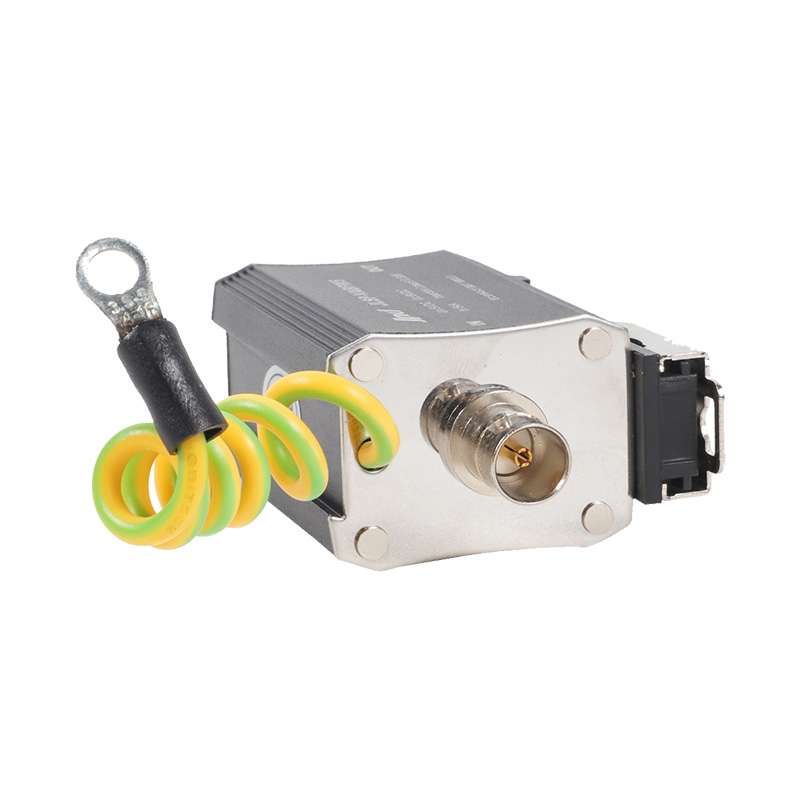

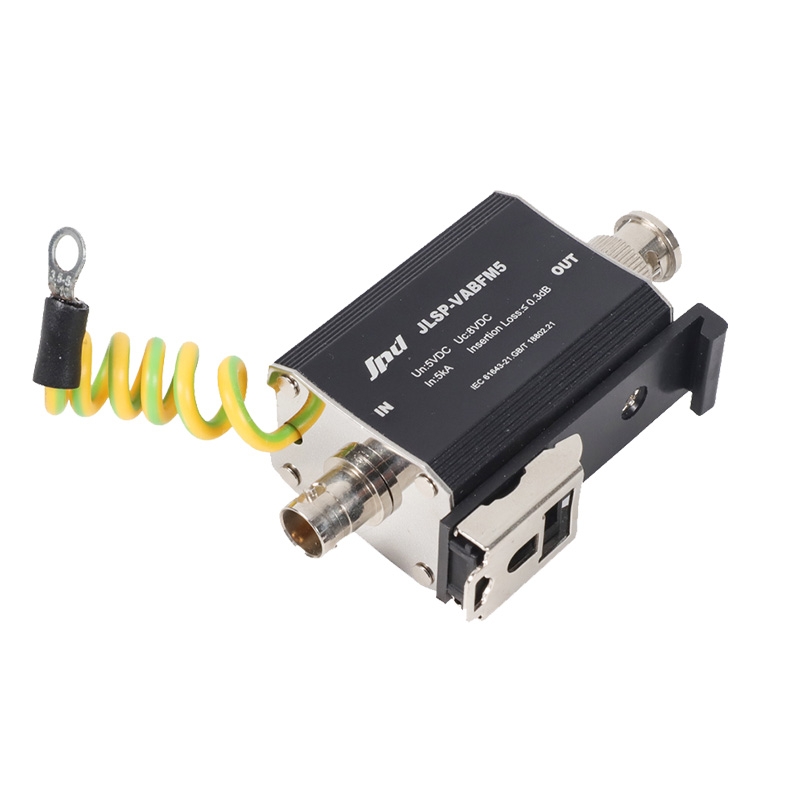

Surge protective device for video data transmission

  It is suitable for coaxial communication equipment such as cable television, public television, instruments, monitoring systems and video-on-demand systems, and is dedicated to lightning and surge protection at the equipment end.


Standard compliance

  IEC61643-21


Features:

  * Low insertion loss and low voltage protection level

  * Fast response: action with nanosecond

  * High rate transmission

  * Large discharge current capacity

  * DB9 interface, easy mounting

  * Protection for data line with D-SUB interface

Model Nominal voltage Un(V) Max.continuous operatingvoltage Uc(Vdc) Nominal discharge current In(kA) Protection level Up(line-line)(V)(B2:4kV) Protection level Up(line-PE)(V)(B2:4kV)
Frequency(MHz) Impedance Insertion loss(dB)
JLSP-VABFM5 5 8 5 ≦30
≦600
10 50 ≦0.3

surge protection devicesurge protection devicesurge protection device
