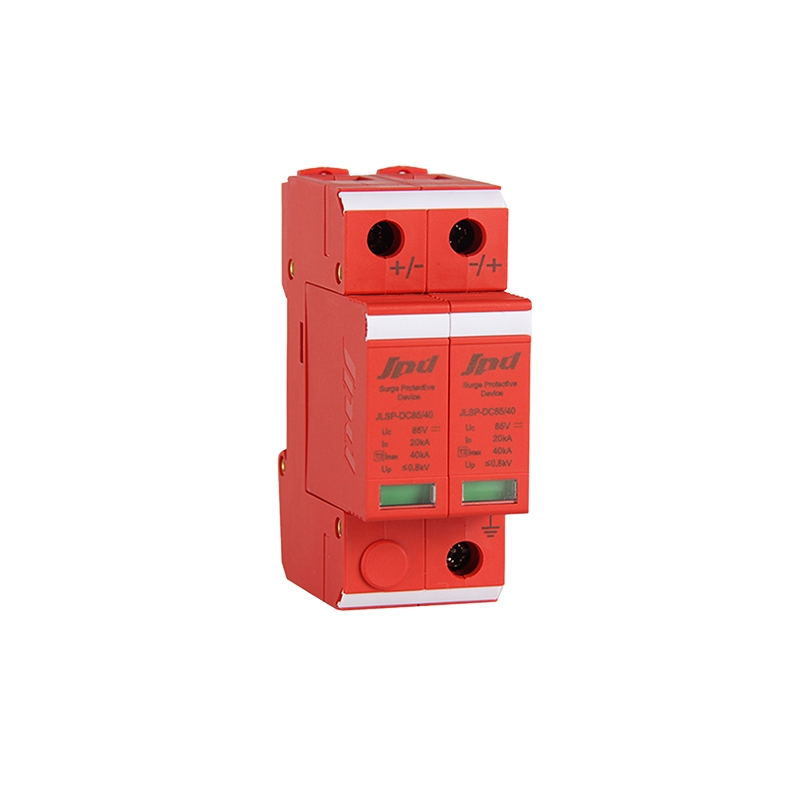

Jinli type 2 surge protection device 24V 48V 2poles DC SPD

Type 2 DC surge protector

In:20kA; Imax: 40kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM & ODM SPD factory, professional manufacturer

  • Item NO.:

    JLSP-DC85/40/2P
  • Order(MOQ):

    10
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Shanghai
  • Product Detail

Jinli type 2 surge protection device 24V 48V DC SPD, 24v dc surge protector

DC power surge protective device is used in all kinds of DC power system, such as industrial control system, communication system and fire control system with DC voltage of 24V, 48V, 110V, 220V etc.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods


Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-DC85/40/2P
Descrpition Type 2 DC surge protector-2poles
Network 24, 48V
Max. AC operating voltage (Uc) 85V
Nominal discharge current In(kA) 20kA
Max. Discharge current Imax (kA) 40kA
Protection level Up (kV) ≦0.8kV
Dimensions 36*90*62MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11
