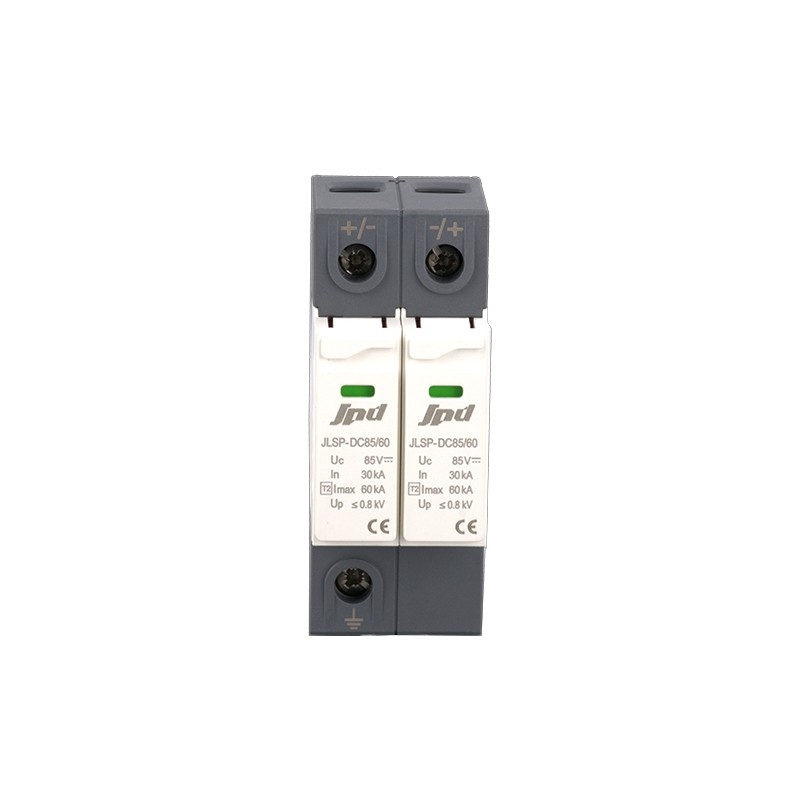

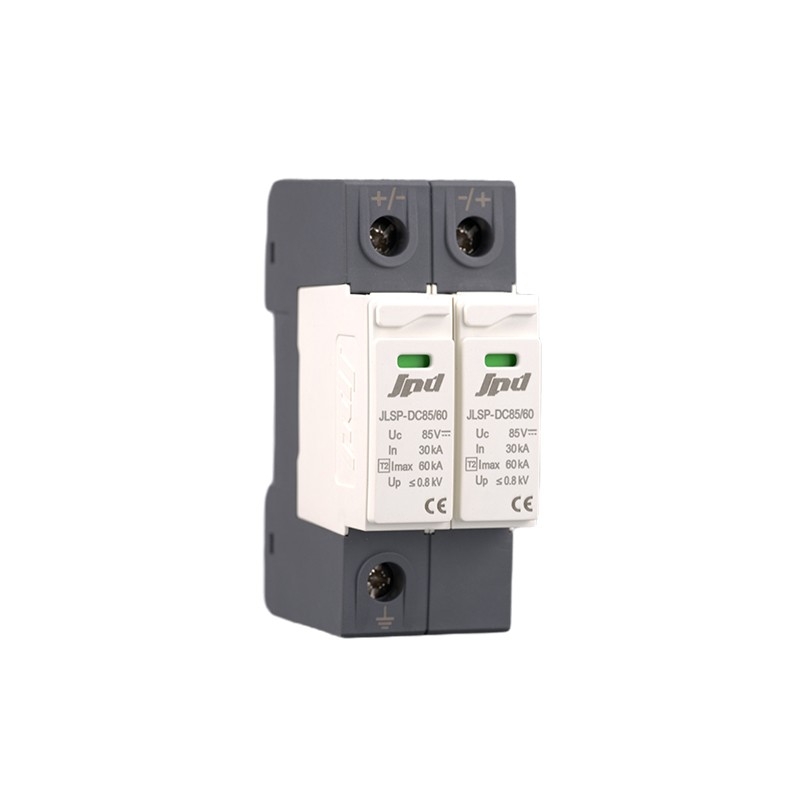

Jinli 60kA 85V single phase dc spd

Type 2 DC 85V surge protector, 2poles dc spd

In:30kA; Imax: 60kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM acceptable

SPD factory, professional manufacturer, Sungrow, Goodwe supplier

  • Item NO.:

    JLSP-DC85/60/2P
  • Order(MOQ):

    10
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Shanghai
  • Product Detail

Single phase dc surge arrester device SPD, dc surger arrester

DC surge protective device is used in all kinds of DC power system, such as industrial control system, communication system and fire control system with DC voltage of 24V, 48V, 110V, 220V etc.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods


Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-DC85/60/2P
Descrpition Type 2 DC surge protector-2poles
Network 24; 48V
Max. AC operating voltage (Uc) 85V
Nominal discharge current In(kA) 30kA
Max. Discharge current Imax (kA) 60kA
Protection level Up (kV) ≦0.8 kV
Dimensions 36*90*62MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11

spd surge protection

power supply spd

spd device

Hot tags: Single phase dc spd, 2Poles dc spd, dc surge protection device, lighting surge protection device, solar spd, pv surge protection device, surge protector devices
