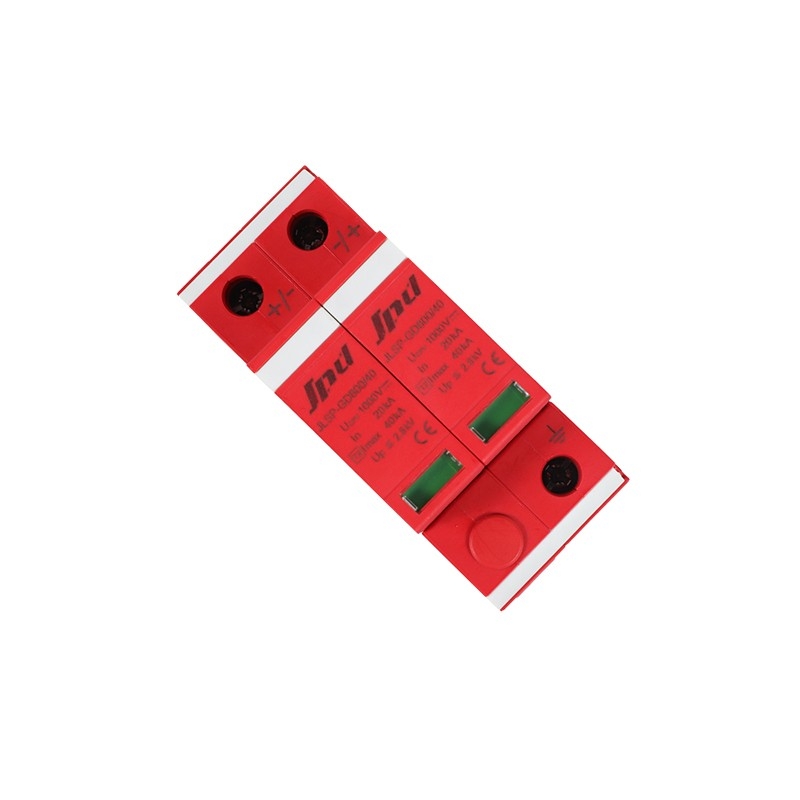

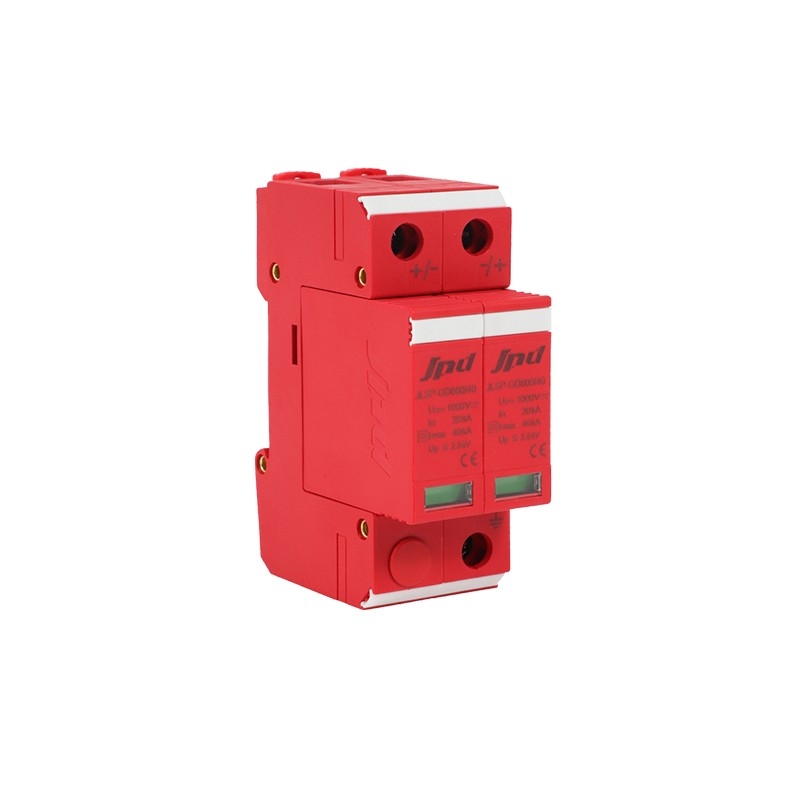

Jinli type 2 dc surge arrester SPD 2 pole 1000V

Type 2 DC SPD 2 Pole, dc 1000V 2 pole

In:20kA  Imax: 40kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM acceptable

SPD factory, professional manufacturer

  • Item NO.:

    JLSP-GD800/40/2P
  • Order(MOQ):

    10
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    Shanghai
  • Product Detail

Type 2 surge protection device 1000V, DC SPD 1000V 2 Poles

Photovoltaic surge protection device is avalibale for 600V, 800V, 1000V and 1500V dc power system of phototvoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.


PV standard IEC 61643-31

Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications


Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

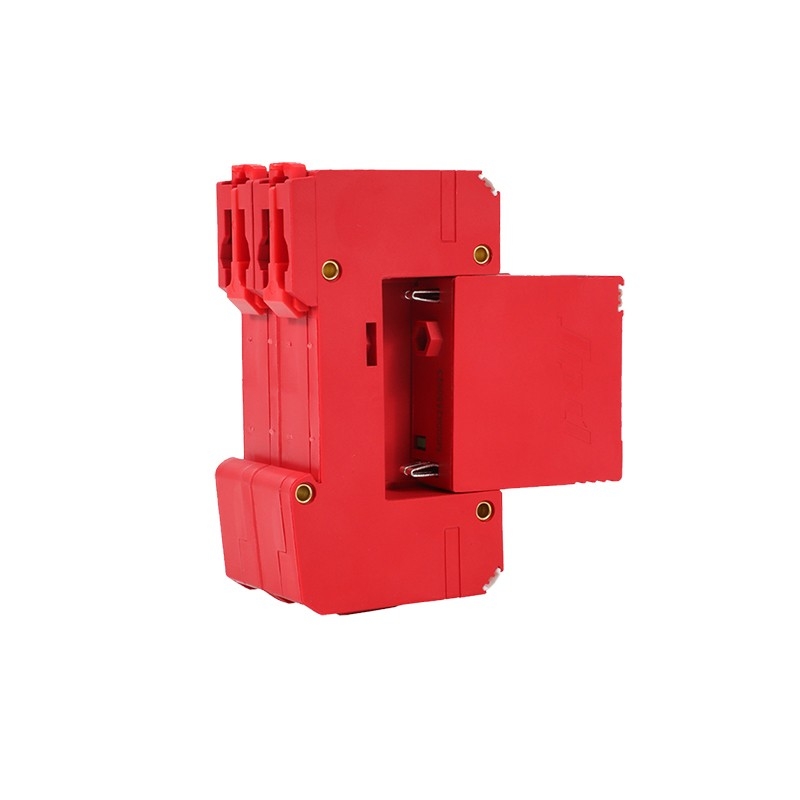

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-GD800/40/2P
Descrpition Type 2 DC surge protector-2poles
Network 800V
Max. AC operating voltage (Uc) 1000V
Nominal discharge current In(kA) 20kA
Max. Discharge current Imax (kA) 40kA
Protection level Up (kV) ≦2.8kV
Dimensions 36*90*62MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11

Hot tags:  dc surge protection device for solar projects, dc surge protector for PV systems, dc spd 600V for solar inverter, dc spd 500V for photovaltic projects, single phase dc spd, type 2 surge protection device, dc spd, dc surge protector device, surge arrester, dc spd 2pole, dc 1000v 2poles
