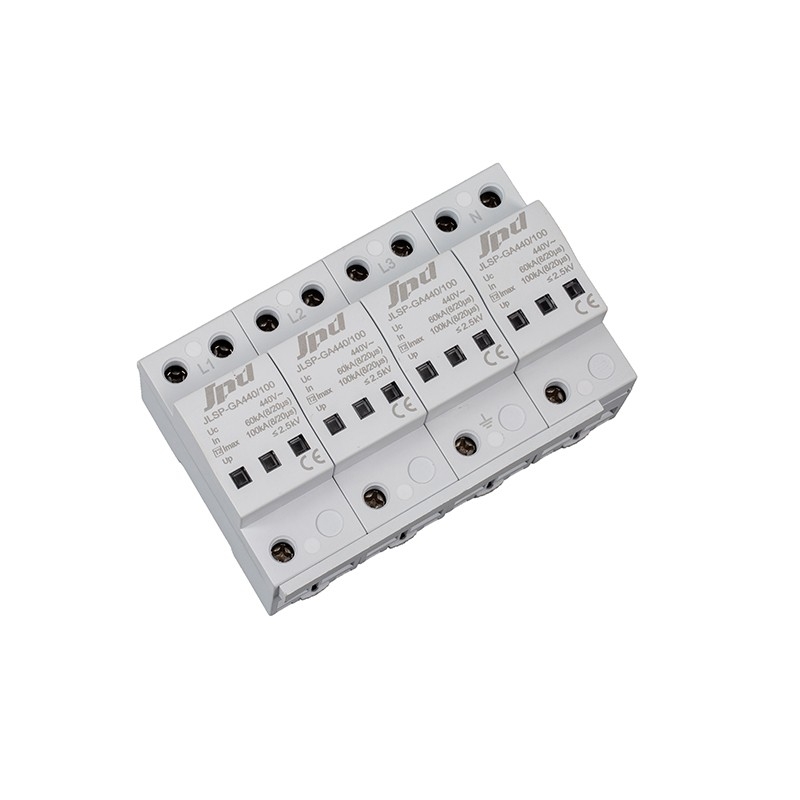

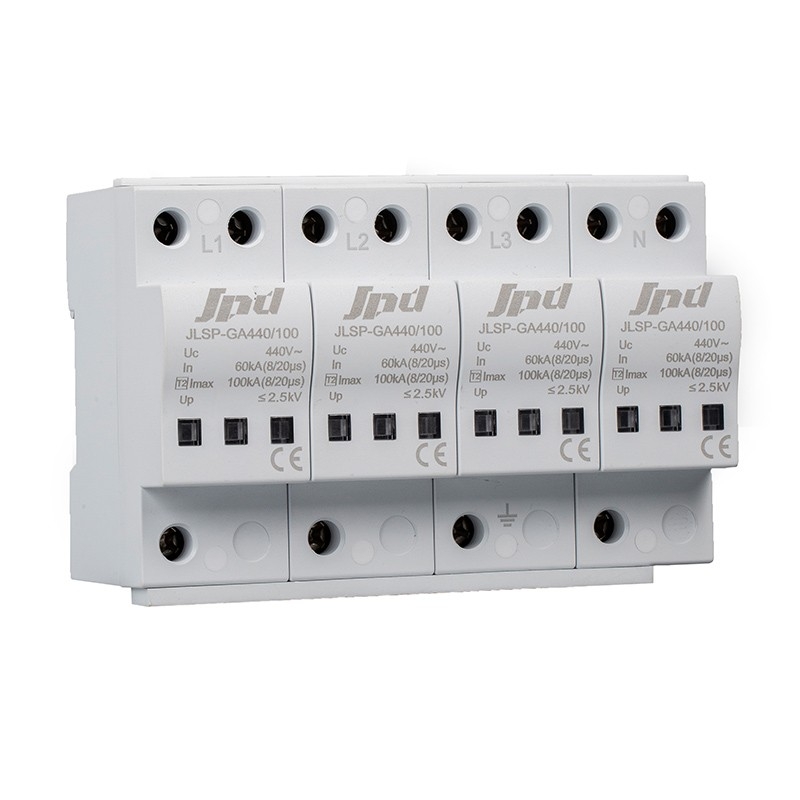

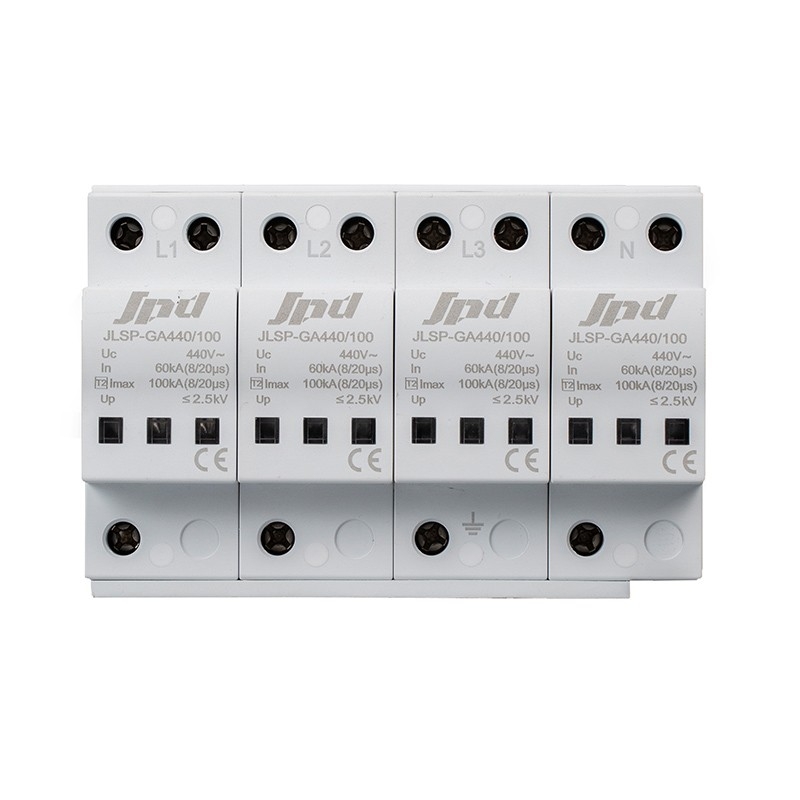

Jinli SPD JLSP-GA440/100/4P AC Surge Protector with 100kA

SPD AC Surge Protection Device

Uc=440v, In:60kA, Imax: 100kA

Low voltage Protection Level

Thermal Tripping Protection, status indicator, and remote signaling

IEC 61643-11

OEM/ODM acceptable

  • Item NO.:

    JLSP-GA440/100/4P
  • Product Detail

Jinli SPD JLSP-GA440/100/4P AC Surge Protector with 100kA

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods


Features:

* Reliable thermal tripping protection

* Status indicator: Transparent (normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* IEC Class: Class Ⅱ

Model JLSP-GA440/100/4P
Descrpition Type 2 AC Surge Protection Device
AC Network Un (50/60Hz) (V) 230/400,240/415(TN/TT/IT)
Max. AC operating voltage (Uc) 440V
Nominal discharge current In(kA) 60kA
Max. Discharge current Imax (kA) 100kA
Protection level Up (kV) ≦2.5
Dimensions(1P) (mm) 36*90*65
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Flame Retardant Rating UL94 V-0
Standards compliance IEC61643-11, GB/T18802.11



spd lightning protection

spd lightning protection

spd lightning protection


Hot tags: 100kA SPD,ac spd, 4p surge protector, ac surge protection device, spd protector, low voltage surge protector, surge protector arrester, lightning protection,surge arrester
