Jinli SPD JLSP-GA175/100/4P Surge Protection Device

SPD AC Surge Protection Device

Uc=175v, In:60kA, Imax: 100kA

Low voltage Up

Thermal Tripping Protection, status indicator, and remote signaling

IEC 61643-11

OEM/ODM acceptable

  • Item NO.:

    JLSP-GA175/100/4P
  • Product Detail

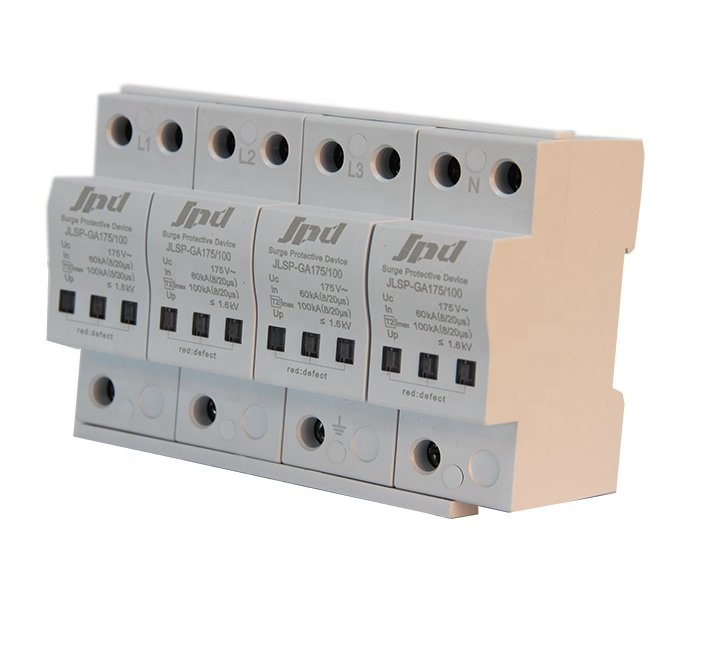

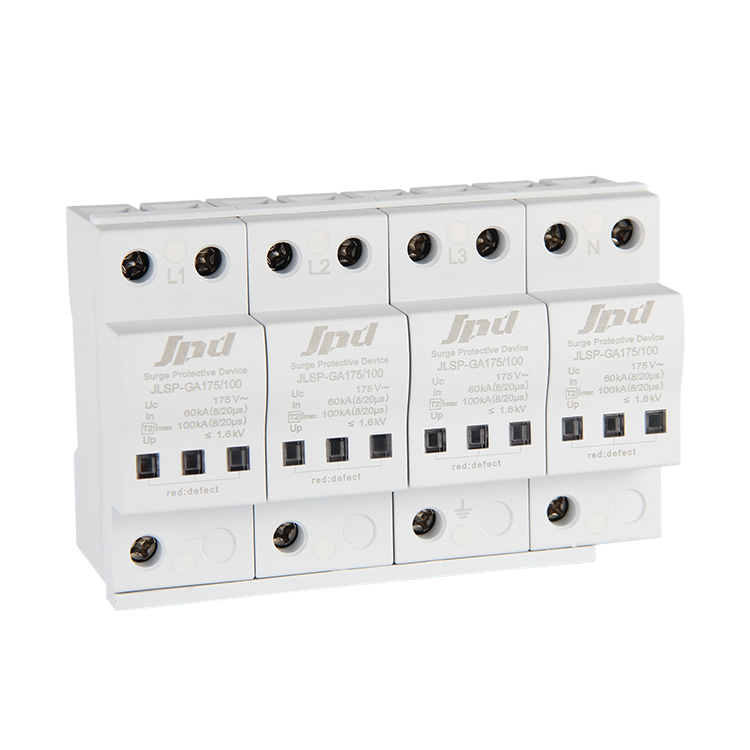

AC SPD Surge Protection Device JLSP-GA175/100/4P

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods


Features:

* Reliable thermal tripping protection

* Status indicator: Transparent(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* IEC Class: Class Ⅱ

Model JLSP-GA175/100/4P
Descrpition Type 2 AC Surge Protector-4poles
AC Network Un (50/60Hz) (V) 120(TN-S)
Max. AC operating voltage (Uc) 175V
Nominal discharge current In(kA) 60kA
Max. Discharge current Imax (kA) 100kA
Protection level Up (kV) ≦1.6
Dimensions(1P) (mm) 36*90*65
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Flame Retardant Rating UL94 V-0
Standards compliance IEC61643-11, GB/T18802.11



spd lightning protection

spd lightning protection

spd lightning protection


Hot tags: ac spd, 4p surge protector, ac surge protection device, spd protector, low voltage surge protector, surge protector arrester, lightning protection

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Surge Protection Device

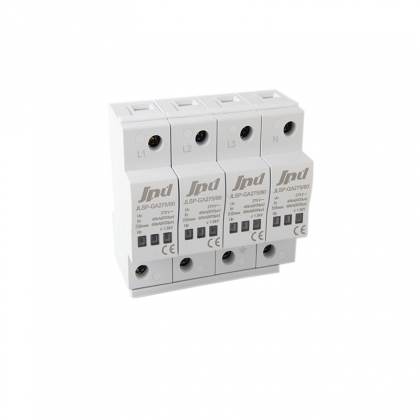

JLSP-GA275/80/4P Jinli AC 275v 80kA SPD Surge Protection Device
SPD AC Surge Protection Device Uc=275v, In:40kA, Imax: 80kA Low voltage Up Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
Surge Protection Device

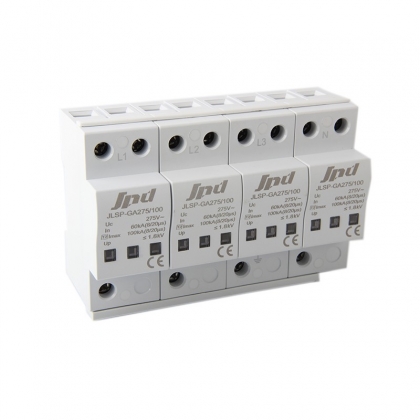

Jinli AC 275v 100kA SPD JLSP-GA275/100/4P Surge Protector
SPD AC Surge Protection Device Uc=275v, In:60kA, Imax: 100kA Low voltage Up Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
Surge Protection Device

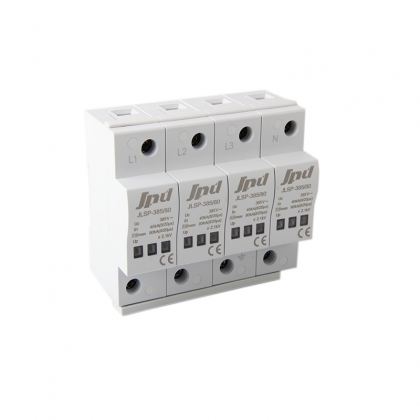

385v 80kA Surge Protector Arrester Jinli SPD JLSP-385/80
SPD AC Surge Protection Device Uc=385v, In:40kA, Imax: 80kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
Surge Protection Device

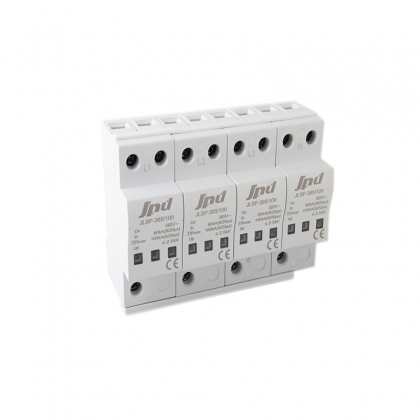

385v 100kA Surge Protector Arrester Jinli SPD JLSP-385/100
SPD AC Surge Protection Device Uc=385v, In:60kA, Imax: 100kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
AC Surge Protection Device

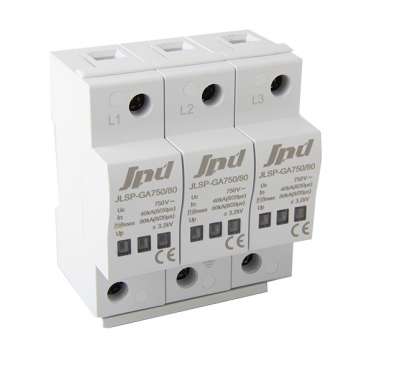

Jinli SPD JLSP-GA750/80 AC Surge Protector with 750v/40kA
SPD AC Surge Protection Device Uc=750v, In:40kA, Imax: 80kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
AC Surge Protector

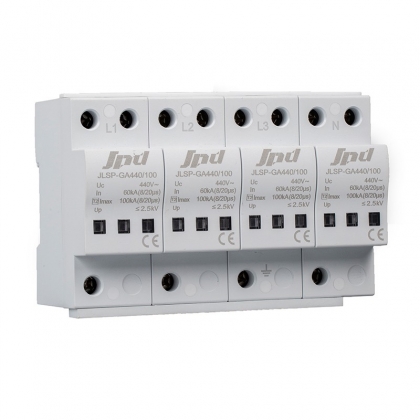

Jinli SPD JLSP-GA440/100/4P AC Surge Protector with 100kA
