Type 1 AC Surge Protective Device
Iimp:12.5kA
In:12.5kA
Low voltage Up
Thermal Tripping Protection, status indicator, and remote signaling
IEC 61643-11
OEM/ODM acceptable
Apply to PV System and wind turbine system
Item NO.:

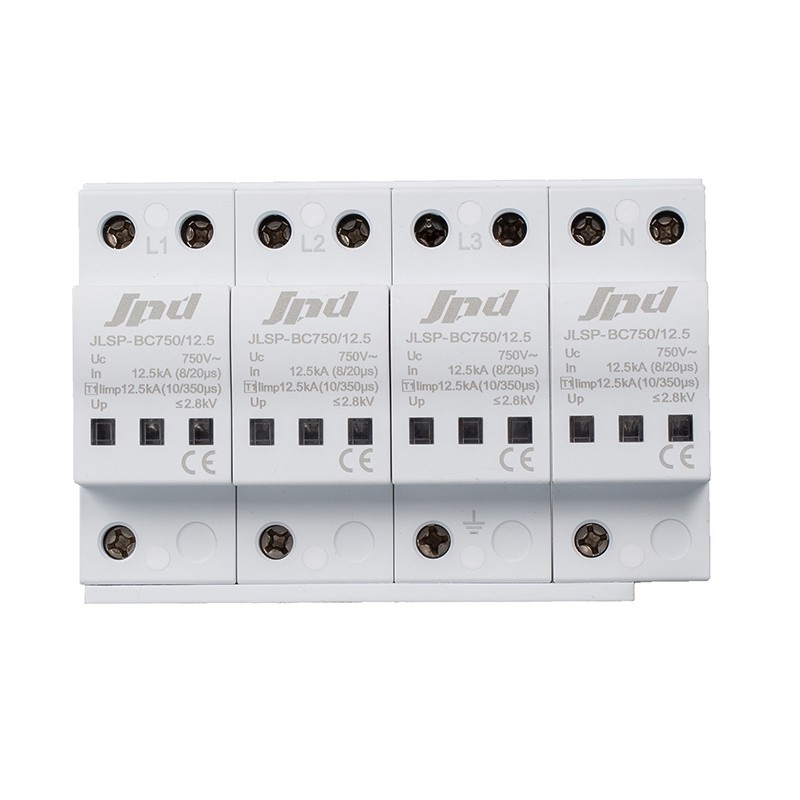

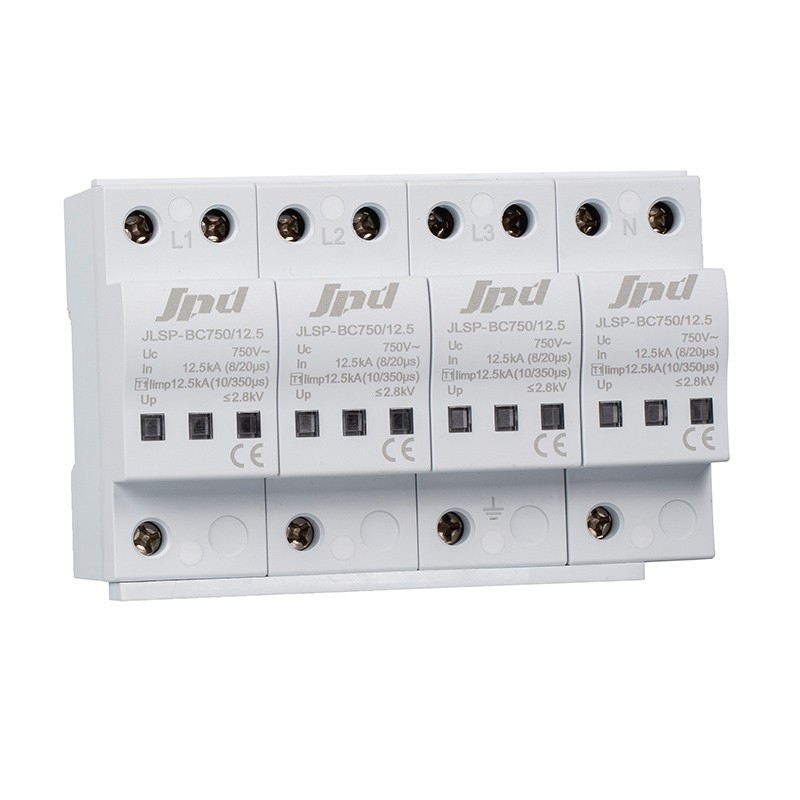

JLSP-BC750/12.5Jinli SPD JLSP-BC750/12.5 Surge Protector Arrester
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Transparent(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Low Voltage Protection Level
* Test Class Ⅰ+Ⅱ
| Model | JLSP-BC750/12.5 |
| Descrpition | Type 1 AC surge protection device |
| Network | 460、277/480、400/690 (TN/TT/IT) |
| Max. AC operating voltage (Uc) | 750V |
| Lightning impluse current Iimp(kA) | 12.5kA |
| Nominal discharge current In(kA) | 12.5kA |
| Protection level Up (kV) | ≦2.8kV |
| Dimensions(1P) (mm) | 36*90*65 |
| Protection rating | IP 20 |
| Response time tA (ns) | ≦25 |
| Oeprating temperature | -40/+85℃ |
| Mounting | DIN Rail 35mm |
| Flame Retardant Rating | UL94-V0 |
| Standards compliance | IEC61643-11, GB/T18802.11 |
