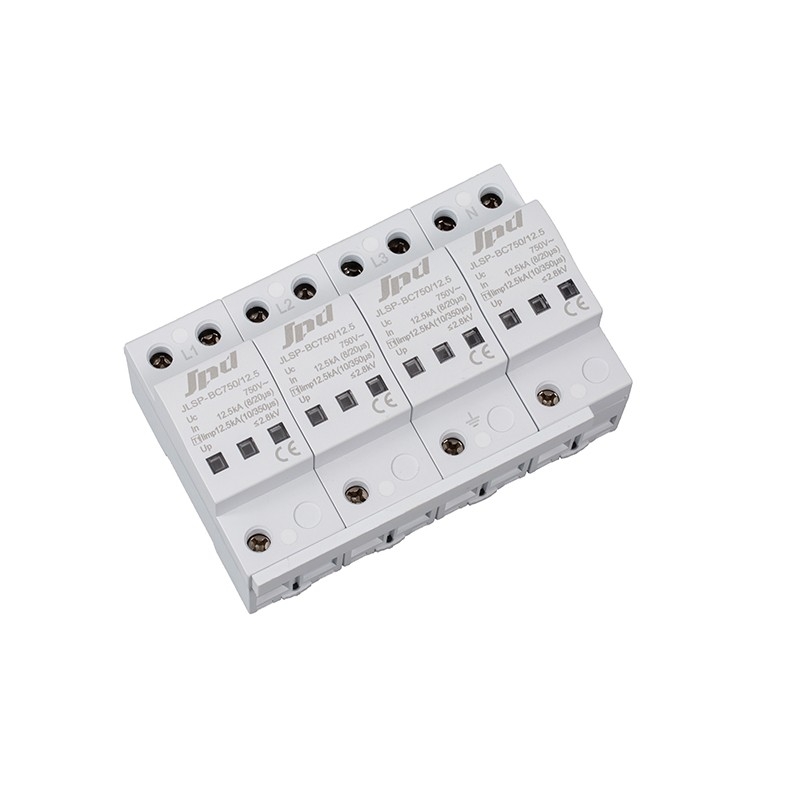

Jinli AC SPD JLSP-BC750/12.5 Surge Protection Device

Type 1 AC Surge Protective Device

Iimp:12.5kA

In:12.5kA

Low voltage Protection Level

Thermal Tripping Protection, status indicator, and remote signaling

IEC 61643-11

OEM/ODM acceptable

Apply to PV System and wind turbine system

  • Item NO.:

    JLSP-BC750/12.5
  • Product Detail

Jinli AC SPD JLSP-BC750/12.5 Surge Protection Device

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Transparent(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Low Voltage Protection Level

* Test Class Ⅰ+Ⅱ

Model JLSP-BC750/12.5
Descrpition Type 1 AC surge protection device
AC Network Un (50/60Hz) (V) 460、277/480、400/690 (TN/TT/IT)
Max. continuous operating voltage (Uc) 750V
Lightning impluse current Iimp(kA) 12.5kA
Nominal discharge current In(kA) 12.5kA
Protection level Up (kV) ≦2.8kV
Dimensions(1P) (mm) 36*90*65
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Flame Retardant Rating UL94-V0
Standards compliance IEC61643-11, GB/T18802.11

type 1 2 surge protection device

three phase surge protector

3 phase surge protection device

Hot tags: JLSP-BC750/12.5

              Iimp=12.5kA

              type 1 surge protection device

              ac surge protection device

              Reliable Thermal Tripping

              remote signalling

              Surge Protector for Lightning Protection

              Surge Protection Device for PV System
