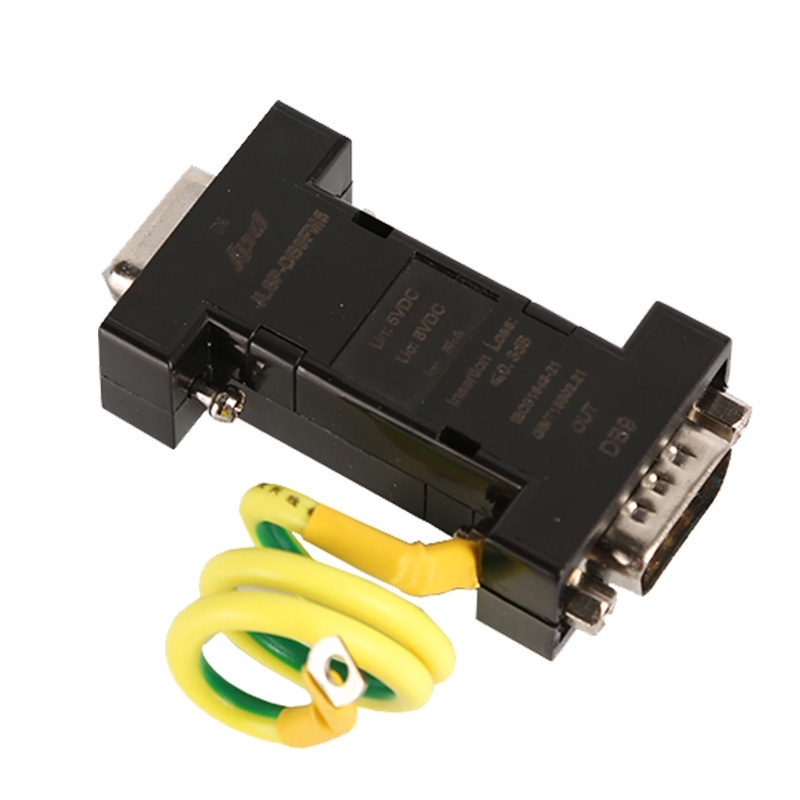

Jinli JLSP-DB9FM5 Signal SPD Surge Protection Device with DB9 Interface

Signal Surge Protective Device

DB9 Connection

OEM/ODM acceptable

Easy mounting

  • Item NO.:

    JLSP-DB9FM5
  • Product Detail

Jinli JLSP-DB9FM5 Signal SPD Surge Protection Device with DB9 Interface

The data line signal surge protector is suitable for bus type, analog and switch signal protection of various data information systems, such as industrial control systems, security systems, other control systems, etc.


Features:

* Low insertion loss and low voltage protection level

* Fast response: action with nanosecond

* High rate transmission

* Large discharge current capacity

* DB9 interface, easy mounting

* Protection for data line with D-SUB interface

Model

Nominal voltage Un(V)

Max.continuous operatingvoltage Uc(Vdc)

Nominal discharge current In(kA)

Protection level Up(line-line)(V)(B2:4kV)

Protection level Up(line-PE)(V)(B2:4kV)

Impedance

Insertion loss(dB)

JLSP-DB9FM5

5

8

5

≦40

≦600



≦0.3

JLSP-DB9FM15

15

18

5

≦40

≦600



≦0.3

JLSP-DB9FM24

24

30

5

≦40

≦600



≦0.3


spd lightning protection

spd lightning protection

spd lightning protection


Hot tags:Signal Surge Protective Device, SPD with DB9, B9 Connection SPD, Surge Protecition Device, Surge Protector
