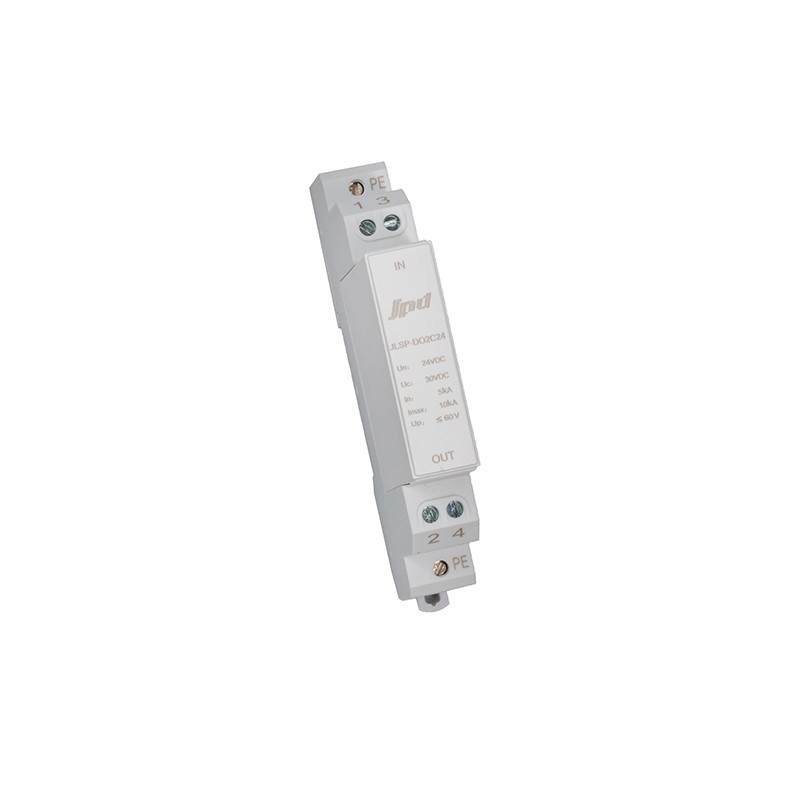

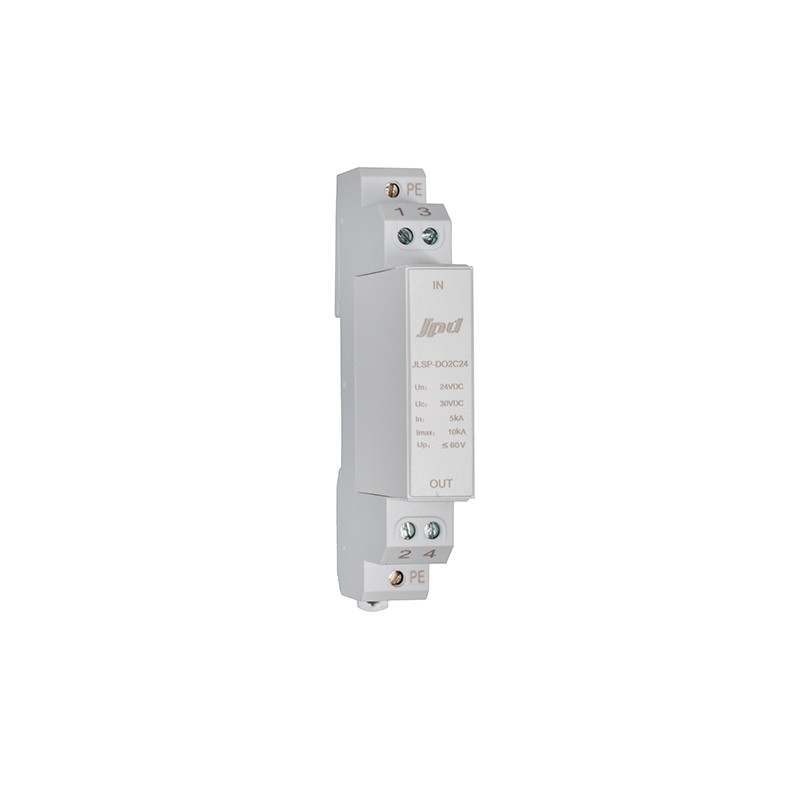

Data Line Surge Protection Device JLSP-DO2C24 For RS485/232/422 Bus and Analog/Digital Signal

Signal Surge Protection Device

For Industrial Control system,4-20mA signal protection etc.

OEM/ODM acceptable

  • Item NO.:

    JLSP-DO2C24
  • Product Detail

Data Line Surge Protection Device JLSP-DO2C24 For RS485/232/422 Bus and Analog/Digital Signal


Network signal surge protector is widely used in the comprehensive network wiring of office and industrial places and similar data communication systems, such as various computer network equipment, switches, routers, hub, program-controlled switches, small switchboard, telephone, fax machine and other sensitive communication network lines and audio signal lines.

Standard compliance: IEC61643-21

It is designed according to the surge protector standard of IEC communication products. The product ha good frequency transmission characteristics, high throughput and extremely fast response, and can protect 2 to 8 communication lines.

Features:

* Low insertion loss and low voltage protection level

* Fast response: action within nanosecond

* High rate transmission

* Large dischage current capacity

* DIN rail 35mm mounting

* Direct grounding by rail

* Pluggable design


Model

Nominal voltage Un(V)

Max.continuous operatingvoltage Uc(Vdc)

Nominal discharge current In(kA)

Protection level Up(line-line)(V)(B2:4kV)

Protection level Up(line-PE)(V)(B2:4kV)

Insertion loss(dB)

JLSP-DO2C24

24

30

5

30

600

0.3

JLSP-DO2C48

48

56

5

100

600

0.3

JLSP-DO2C5

5

8

5

30

600

0.3

JLSP-DO2C12

12

15

5

50

600

0.3

spd lightning protection

spd lightning protection

spd lightning protection


Hot tags:Signal Surge Protective Device, Surge Protecition Device, Surge Protector
