Jinli small size dc spd 20kA surge protector

Type 2 DC surge protector, 670V dc surge protector

In:10kA, Imax: 20kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM/ODM SPD manufacturer

Sungrow, Goodwe, Growatt supplier, work with Huawei

  • Item NO.:

    GTSP-MDV670/20/A
  • Product Detail

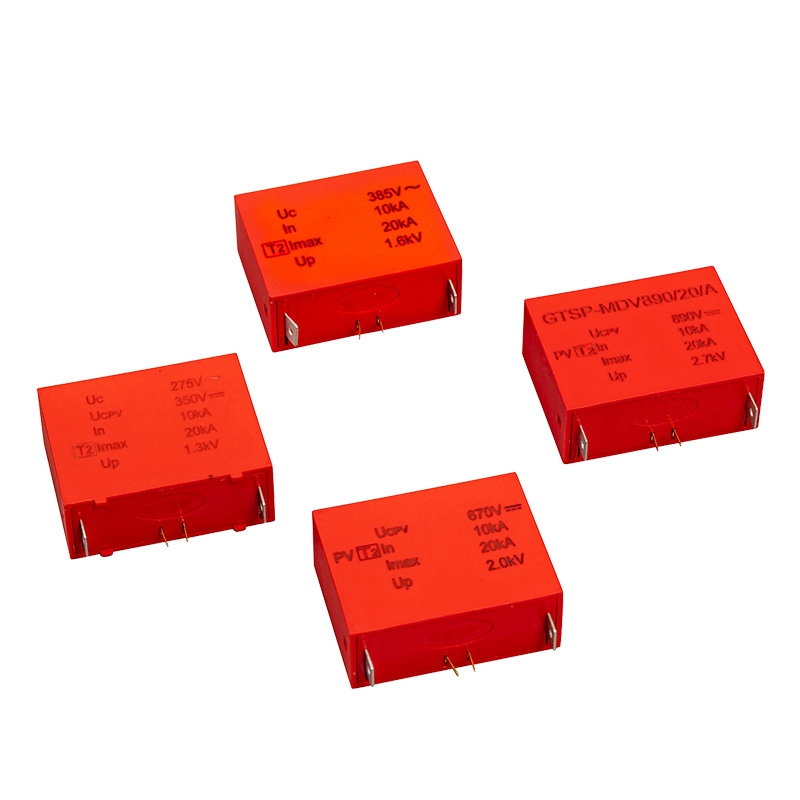

PCB type SPD DC 670V 20KA, offering to Sungrow, Goodwe and Growatt

PCB type surge protection device is voltage-limiting type SPD and mainly used to prevent surge overvoltage in AC/DC power supply circuite, which equipped with safety disconnection device and status indicator. Normally, the indicator window is green, and will turn to red under malfunction and generate remote alarm signaling.


Application

It is applicable to 220V/380V AC power system or 670V (<670V)DC system. In=10kA, Imax=20kA, and it is soldered directly onto PCB of various electrical and electronic equipment,such as AC circuitt of charging pile, inverter, communication equipment, household appliances etc, as the second or third stage protection.


Features

* DC series

* Reliable thermal tripping protection

* Status indicator

* Low voltage protection level

* Optional remote signaling

* Easy for automatic soldered

* Apply to protection for inverter, charge pile, etc

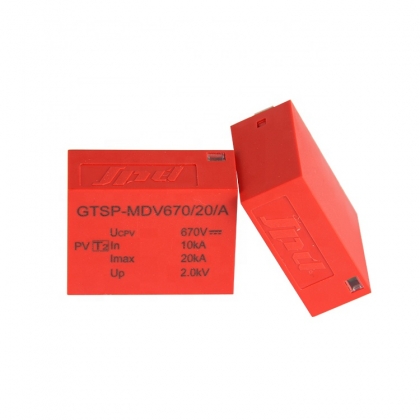

Model GTSP-MDV670/20/A
Descrpition Mini size PCB SPD
Max. DC operating voltage (Uc) 670V
Nominal discharge current In(kA) 10kA
Max. Discharge current Imax (kA) 20kA
Protection level Up (kV) ≦2.0kV
Dimensions 34.9*14.2*27.4MM (not including the pin)
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  Soldered onto PCB
Housing material PBT
Standards compliance IEC64643-11, GB/T18802.11
spd protection device

spd protection devicespd protection device

Hot tags:  PCB sugre protection, spd protection device, spd solar, surge protection device manufacturers



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
spd dc 20ka

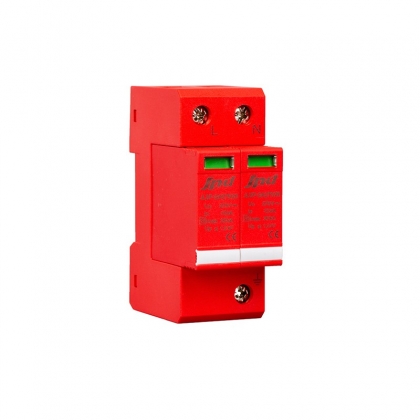

Mini type 1+2 surge protector devices PCB use DC SPD
Type 1+2 DC surge protector In:20kA Imax: 40kA Iimp:3kA Low voltage Up Internal disconnection, statue indicator, and remote signaling IEC 61643-11 OEM/ODM SPD manufacturers Sungrow, Goodwe, Growatt supplier, work with Huawei
Surge Protection Device
China SPD Supplier Jinli GTSP-MDV670/20/A PCB Type SPD Surge Protetion Device For Inverter
PCB Type Surge Protection Device Ucpv=670v, In:10kA, Imax: 20kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
Surge Protection Device
Jinli GTSP-MDV670/20/A Mini PCB Type SPD Surge Protetion Device For Inverter,Charge Pile
PCB Type Surge Protection Device  Ucpv=670v, In:10kA, Imax: 20kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
Surge Protection Device
GTSP-MDV670/20/A PCB Board SPD Surge Protetor For Inverter,Charge Pile
PCB Type Surge Protection Device Ucpv=670v, In:10kA, Imax: 20kA Low voltage Protection Level Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
spd dc 500v

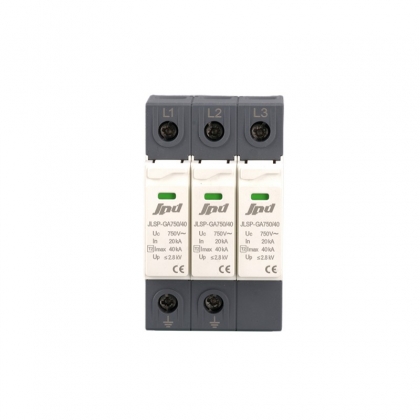

Jinli 500V dc surge protector solar spd
Type 2 surge protector 500v SPD, pv surge protection device Uc=750V, for dc 500v solar systems In:20kA Imax: 40kA Low voltage Up Internal disconnection, status indicator, and remote signaling IEC 61643-11 OEM acceptable
Surge Protection Device
Jinli AC 275v 100kA SPD JLSP-GA275/100/4P Surge Protector
SPD AC Surge Protection Device Uc=275v, In:60kA, Imax: 100kA Low voltage Up Thermal Tripping Protection, status indicator, and remote signaling IEC 61643-11 OEM/ODM acceptable
surge protection device type 3

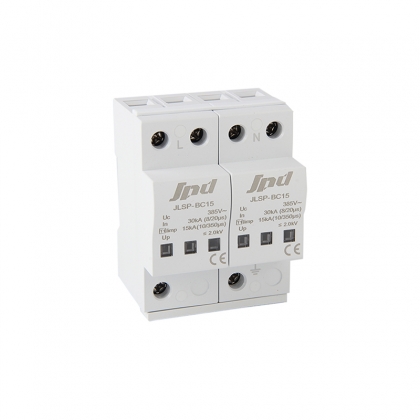

Jinli AC power surge protector device single phase SPD 275V
