Amidst the rapid development of energy transformation and smart grids, lightning disasters pose an increasingly severe threat to power systems. To effectively address this challenge, Jinli Electric has launched an integrated lightning protection solution for power generation, grid loading, and storage. This comprehensive, systematic protection system provides an impenetrable safety barrier for energy systems.

Comprehensive lightning protection, every link cannot be omitted

The integrated power-grid-load-storage system is like a sophisticated "energy ecosystem," with power supply, grid, load, and energy storage all closely linked. Problems in any one of these links could trigger a chain reaction.

1.Power supply :Jinli Electricprovides a full set of high-quality and reliable lightning protection solutions for photovoltaic and wind power systems, which can effectively protect all components of wind power and photovoltaic systems from lightning.

2. Power grids: The transmission lines crisscross mountains and rivers, making them a prime target for lightning strikes. Line arresters and monitoring devices act as gatekeepers, constantly protecting against lightning overvoltages and ensuring unimpeded power transmission.

3. Load: Industrial equipment and precision instruments, for example, can be affected by small fluctuations caused by induced lightning, potentially disrupting normal operation. Installing a suitable surge protection devices like putting lightning protection armor on the equipment. For rail transit systems, SPDs are the core of lightning protection. Isolation transformer cabinets and power supply lightning protection cabinets also perform their respective functions, working together to build a lightning defense line.

4. Energy storage: Battery packs and converters are more sensitive to lightning. In energy storage systems, battery surge protection directly impacts system safety and lifespan. Intelligent lightning protection boxes specifically designed for energy storage utilize high-end lightning protection units with high current flow and low residual voltage. These units monitor their operating status and lightning data. Installed within prefabricated battery compartments, these boxes effectively protect against lightning overvoltages.

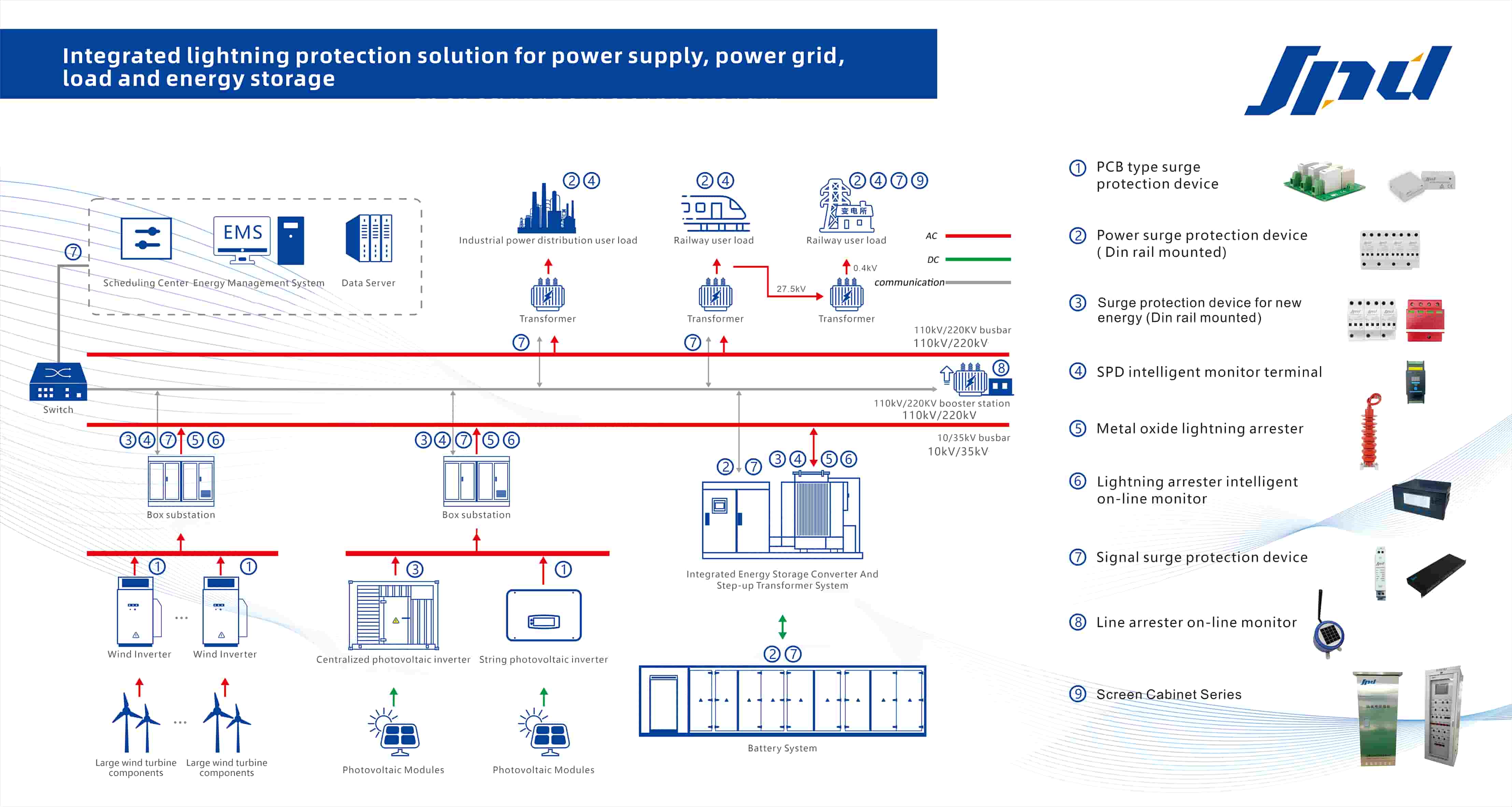

Core of the solution: Four-dimensional integration, precise prevention and control

This solution innovatively integrates the lightning protection requirements of four major links: power supply, grid, load, and energy storage. It is a full life cycle management system covering design, selection, implementation, and monitoring:

1.Lightning protection design: Based on regional lightning activity patterns and system characteristics, we tailor differentiated protection solutions to reduce lightning strike risks at the source;

2.Equipment selection: Strictly select lightning protection devices (such as SPDs and lightning arresters) that meet international standards to ensure the reliability of key equipment;

3. Implementation of measures: Develop strict installation specifications, rationally layout equipment, ensure that lightning protection measures are implemented to every detail with high standards and strict requirements, and build a solid physical defense line;

4. Monitoring and maintenance: Through the intelligent monitoring terminal and the intelligent lightning protection system background, the status of the lightning protection system is monitored in real time to achieve fault early warning and rapid response.

Solution value: Reduce losses, increase efficiency, and provide stable support

1.Safety improvement: It can effectively reduce equipment damage and power outages caused by lightning strikes, ensuring continuous and stable operation of the system;

2.Economic optimization: Reduce operation and maintenance costs, avoid economic losses caused by lightning strikes, and improve energy efficiency;

3.Stable support: Provide reliable guarantees for scenarios such as new energy grid connection and microgrid construction, helping to achieve the "dual carbon" goals.

Future Outlook: Technology Empowerment, Smart Lightning Protection

Jinli Electric's integrated lightning protection solution for power generation, grid loading, and storage is now fully open for cooperation. For more details, please visit the official website or call our customer service hotline. Let us work together to build a safe, efficient, and green energy future!
