Jinli class B AC power surge protection device 220V 275V

Type 2 surge protector SPD 275V, 20ka type 2 spd

Uc=275V, In:10kA, Imax: 20kA

Low voltage Up

Internal disconnection, statue indicator, and remote signaling

IEC 61643-11

OEM/ODM SPD manufacturer

  • Item NO.:

    JLSP-GA275/20/2P
  • Product Detail

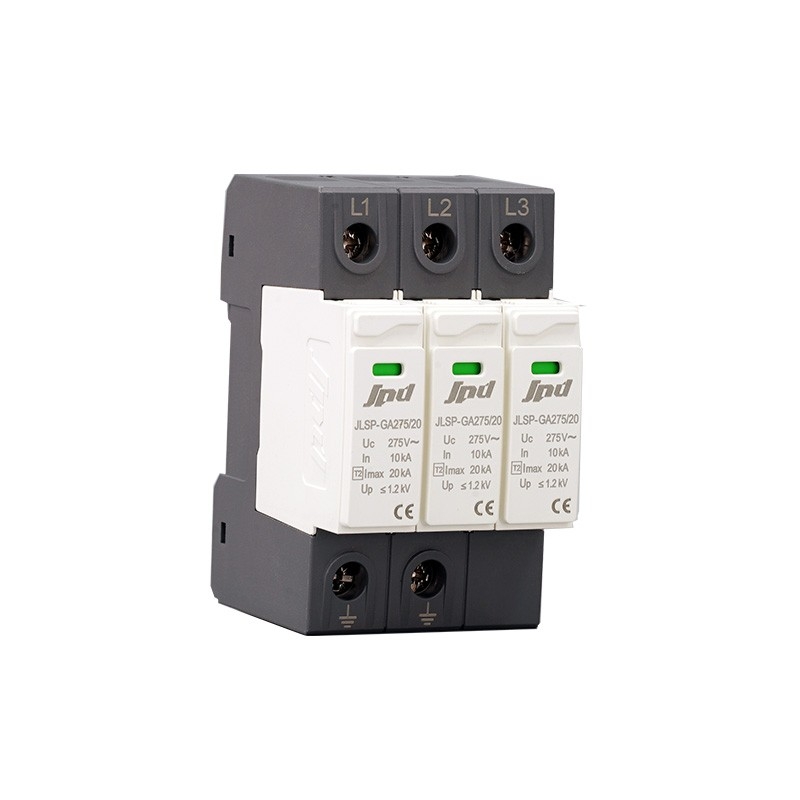

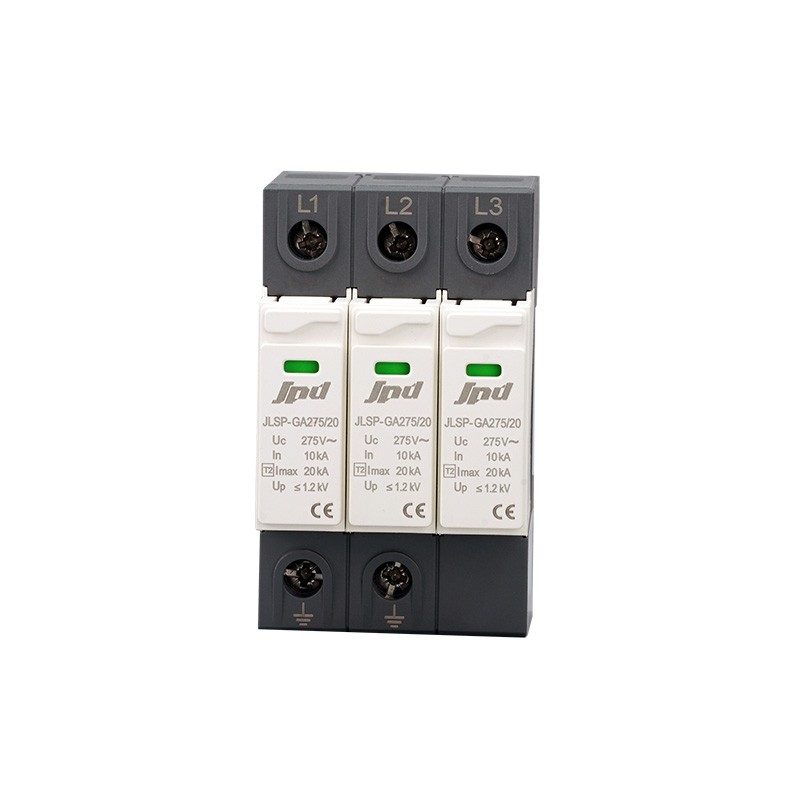

Jinli class B AC power surge protection device 275V, 20ka type 2 SPD

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods


Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model JLSP-GA275/20/2P
Descrpition Type 2 AC surge protector-3poles
Network 202,230,120/208V (TN/TT/IT)
Max. AC operating voltage (Uc) 275V
Nominal discharge current In(kA) 10kA
Max. Discharge current Imax (kA) 20kA
Protection level Up (kV) ≦1.2kV
Dimensions 36*90*62MM
Protection rating IP 20
Response time tA (ns) ≦25
Oeprating temperature  -40/+85℃
Mounting  DIN Rail 35mm
Housing material Thermoplastic UL94-V0
Standards compliance IEC64643-11, GB/T18802.11
20ka type 2 spd20ka type 2 spd

20ka type 2 spd
