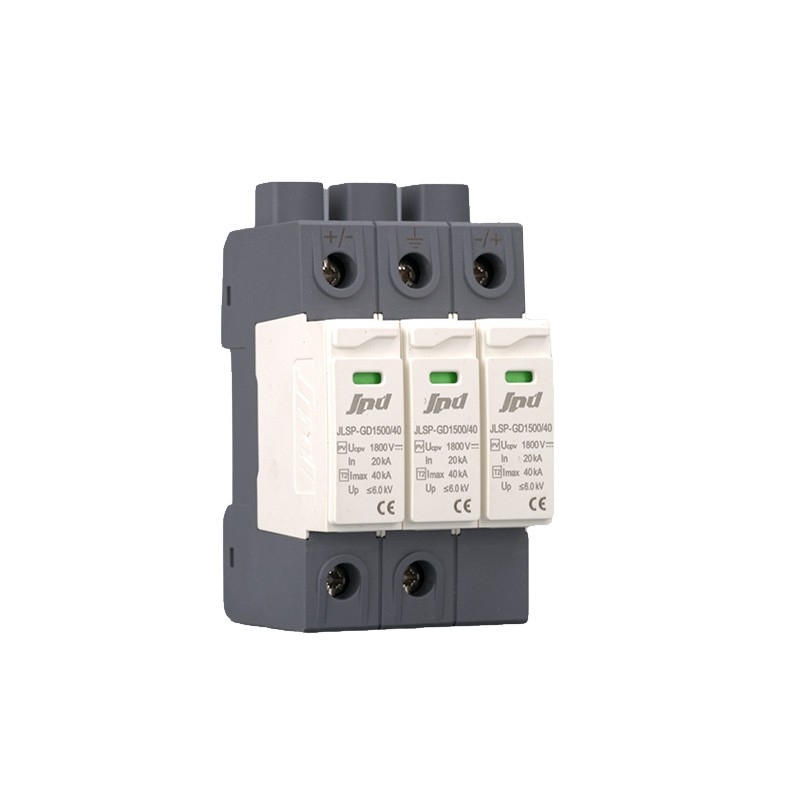

Anhui Jinli surge protector spd 1500V JLSP-GD1500/40/3P/Y

JLSP-GD1500/40/3P/Y Solar surge protective device 1500V with remote signaling

MAX Vdc: 1800V          IMAX: 40KA

RoHS, IEC, UL             Phase 3

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration





  • Item NO.:

    JLSP-GD1500/40/3P/Y
  • Order(MOQ):

    1
  • Product Origin:

    CN
  • Color:

    red
  • Product Detail

Jinli dc spd 1500V solar surge protector

Photovoltaic surge protection device is avalibale for 600V, 800V, 1000V and 1500V dc power system of phototvoltaic power generation equipment in DC side, DC combiner box, inverter in DC side, etc.


PV standard IEC 61643-31

Low-voltage surge protective devices-Surge protective devices for specific application including d.c.-Part 31: Requirements and tests for SPDs in photovoltaic applications

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model

JLSP-GD1500/40/3P/Y

IEC Class

Class II

DC Network Un(50/60Hz)(V)

1500

Max.continuous operating voltage Uc (V)

1800

Nominal discharge current (8/20μs) In (kA)

20

Max. discharge current (8/20μs) Imax (kA)

40

Voltage protection level Up (kV)

≤6.0

Max. backup fuse(A)

100(gG)

Response time tA

≤25ns

Capacity of withstand short circuit

25kA

Operating temperature

-40℃~+85℃

Relative humidity

≤95%(25℃)

Max.cross-sectional area

25mm2  multi-strand cord

Dimensions (1P) (W×L×H)(mm)

18×90×62

Mounting

DIN Rail 35mm

Protection rating

IP 20

Housing material

PBT

Flame retardant rating

UL94 V-0

Capacity of remote signaling contact

250VAC/0.5A   30VDC/3A

Max.cross-sectional area of wire for remote signaling contact

 1.5mm²multi-strand cord / single cord

Status indicator

Normal:green / malfunction:red

Standards compliance

EN61643-11,IEC61643-11,GB/T 18802.1
