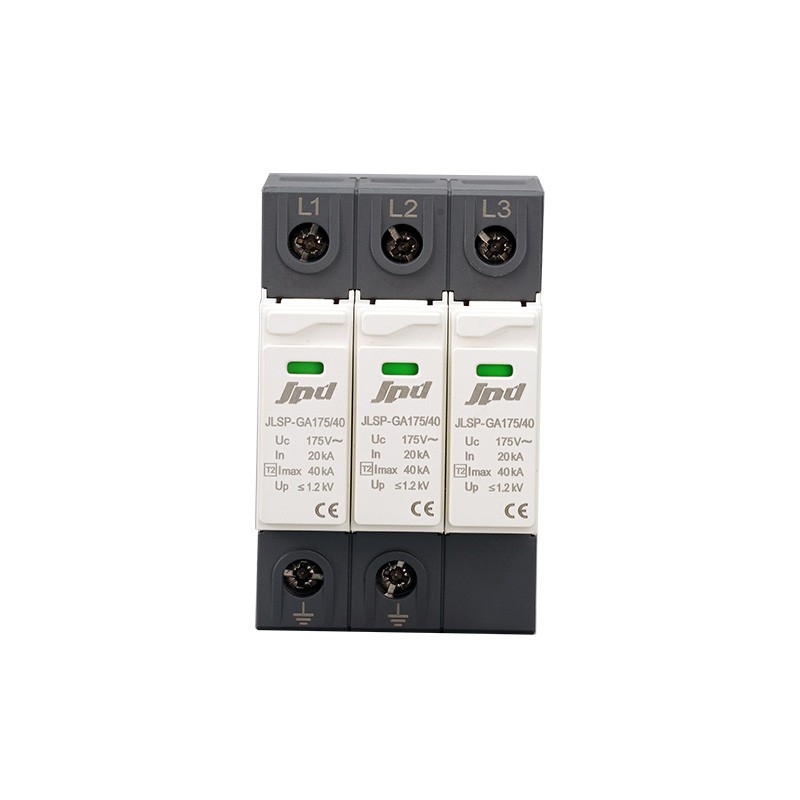

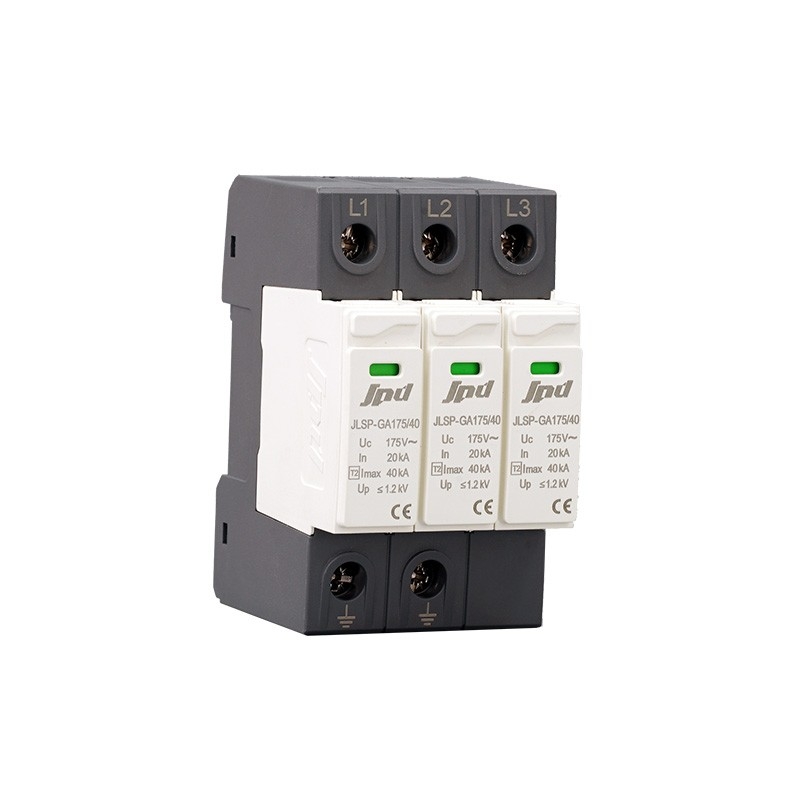

3P 175v lightning protection ac power spd

AC surge protective device 175V
MAX Vac: 175V         IMAX: 40KA

RoHS, IEC, UL certificates   Phase: 3P


DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration


  • Item NO.:

    JLSP-GA175/40/3P
  • Order(MOQ):

    1
  • Product Origin:

    CN
  • Color:

    white
  • Product Detail

Type 2 AC SPD  4P 40kA 120V 175V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.


Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red(Defect)

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model

JLSP-GA175/40/3P

Descrpition

Type 2 AC surge protector-4poles

Network

120V (TN-S)

Max. AC operating voltage (Uc)

175V

Nominal discharge current In(kA)

20kA

Max. Discharge current Imax (kA)

40kA

Protection level Up (kV)

≦1.2kV

Dimensions

72*90*62MM

Protection rating

IP 20

Response time tA (ns)

≦25

Oeprating temperature

-40/+85℃

Mounting

DIN Rail 35mm

Housing material

Thermoplastic UL94-V0

Standards compliance

IEC64643-11, GB/T18802.11
