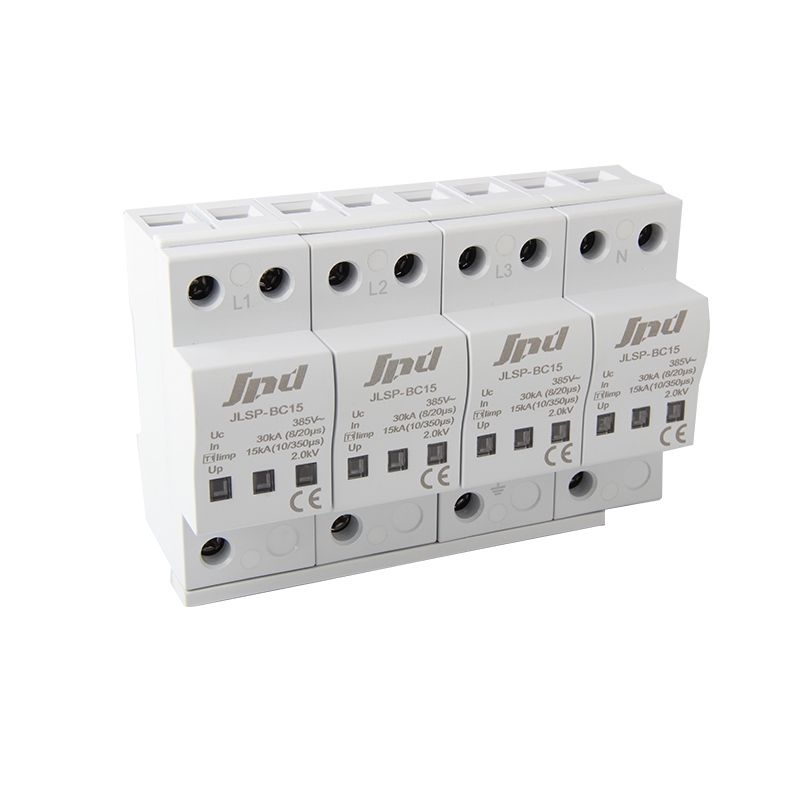

15ka 4P ac spd surge lightning protection arrester

AC surge protective device 230V 400V
AC network Un: 230/400V Iimp(10/350us): 15KA

RoHS, IEC, UL certificates Phase 4P

DIN Rail 35mm

Easy to be replaced with pluggable design

Packing with inner box to prevent transport vibration

Item NO.:
JLSP-BC15/4P
Order(MOQ):
1
Product Origin:
CN

Inquire now

Product Detail

Type 2 AC SPD 4P 15KA 30KA 230V 400V 385V

AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.

IEC Class: class I + class II

Lightning impulse current (10/350us) Iimp (KA): 15KA

Standard compliance: IEC61643-11, EN61643-11

IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods

Features:

* Reliable thermal tripping protection

* Status indicator: Green(normal) Red（Defect）

* Fast response: action within nanosecond

* Optional remote signaling

* Pluggable design, easy to mount

* Latest reflow soldering process, ensure product consistency

Model	JLSP-BC/15/4P
Descrpition	Type1 Type2 AC surge protector
Network	202,230,102/208V (TN/TT/IT)
Max. AC operating voltage (Uc)	385V
Nominal discharge current In(kA)	30kA
Iimp (10/350us) (kA)	15kA
Protection level Up (kV)	≦2.0kV
Dimensions	729062MM
Protection rating	IP 20
Response time tA (ns)	≦25
Oeprating temperature	-40/+85℃
Mounting	DIN Rail 35mm
Housing material	Thermoplastic UL94-V0
Standards compliance	IEC64643-11, GB/T18802.11

surge protection surge protective device

Hot tag: surge protector for lightning strike ac dc pv system phase 1,2,3,4
power surge protection 175V 275V 600V 800V 1000V signal surge protection arrester
spd compliance with IEC, UL, GB/T
solar surge protective device 600v 800v 1000v 1500v

IEC class I+II, 10/350us
