Lightning Early Warning Solution Preface Lightning disasters involve almost all industries, and the losses caused by lightning have risen to the third place among natural disasters. Every year, there are countless personal injuries and property losses caused by lightning strikes around the world. The lightning early warning system is currently recognized as one of the most effective measures to greatly reduce personal injury and property loss.

The lightning early warning system can timely and accurately forecast the local lightning strike status in advance, provide a basis for safe production, and provide effective help for better disaster reduction and mitigation. Two: The working principle of the lightning warning system is well known. When the charge in the thunderstorm cloud reaches a certain amount, a strong electric field is formed between different parts of the cloud or between the cloud and the ground. When the charge accumulates to a certain extent, A discharge phenomenon will occur between the cloud and the cloud or between the cloud and the ground. That is, the occurrence of lightning comes from the accumulation of charges inside the thundercloud; this means that as long as the change of the space electrostatic field can be accurately detected, the situation of the accumulation of thundercloud charges can be indirectly known.

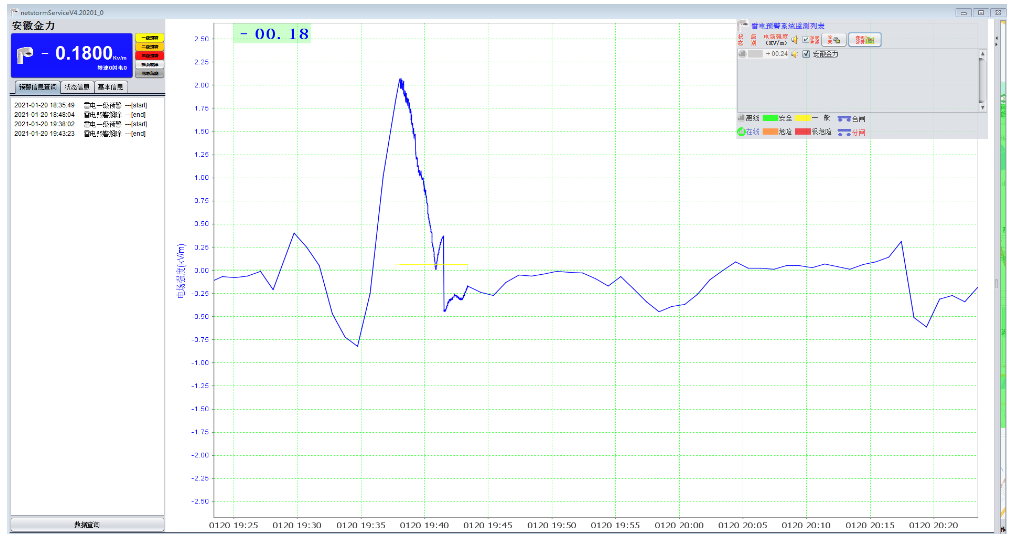

According to relevant meteorological data recorded all over the world for many years, the occurrence of thunder and lightning requires certain conditions and has regularity: when thunderstorm clouds approach or form, the ground electrostatic field changes in a certain way under standard measurement conditions (plain, Flat bottom, no tip effect), the average field strength of the electrostatic field is about 150V/M when the weather is fine, and the electric field strength of the electrostatic field can increase to +/-15KV/M when thunderstorm clouds appear. When a single thunderstorm cloud layer or combined with the front thunderstorm cloud, the electric field strength increases for about 15-20 minutes, we think that when the electric field strength exceeds 2KV/M, the thunderstorm cloud is forming or is approaching, through the change of the electric field strength and passing through The terminal software platform algorithm can quickly and accurately predict the local lightning strike situation in advance.
