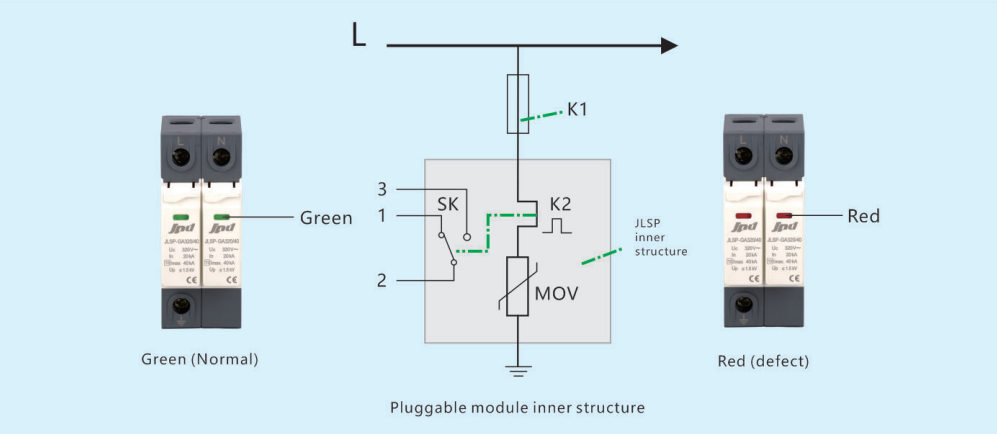

Traditional SPD monitoring only provides a dry contact signal based on a mechanical disconnector, which is a typical "post-failure alarm"—it informs the user that the SPD has completely failed and needs to be replaced. Modern intelligent monitoring modules, however, utilize built-in microprocessors and sensors to transform the SPD from a passive protection component into an intelligent node capable of providing continuous diagnostic data and system situational awareness. The core of this transformation lies in the in-depth interpretation and correlation analysis of the following key parameters:

1. Tracking leakage current: From static parameters to dynamic health indicators

Leakage current is the most critical pre-failure indicator for MOV (metal oxide varistor) type surge protective devices (SPDs). A brand-new MOV has a very small and stable leakage current. As it experiences surge impacts and thermal stress aging from long-term power frequency voltage, its grain boundary layer gradually degrades, leading to an exponential increase in leakage current. The intelligent module continuously monitors this current through high-precision circuitry; its value lies not in a single instantaneous value, but in its change curve over time.

Predictive Maintenance: The system can be configured with multiple threshold levels. When the leakage current exceeds the first warning threshold, an early warning can be sent to maintenance personnel, indicating that the SPD has entered an accelerated aging phase and suggesting replacement during the next scheduled maintenance window. This enables planned maintenance and avoids downtime caused by unexpected failures. When the current approaches the critical threshold, an emergency alarm is triggered, requiring immediate action to prevent fire risks caused by thermal runaway of the SPD.

2. Surge Event Counting and Historical Energy Recording: From Frequency Statistics to Lifetime Degradation Assessment

Simple "event counting" has limited value because a small energy surge and a large energy surge have vastly different impacts on the lifespan of an SPD (Surge Protective Device). Advanced monitoring modules not only count events but also estimate the energy carried by each surge event (by analyzing the amplitude and waveform characteristics of the surge current, or by integrating the resulting clamping voltage and duration).

Cumulative Damage Model: By combining the SPD energy tolerance and lifespan curves provided by the manufacturer, the system can establish a cumulative damage model. Instead of simply telling you "10 surges have occurred," it can assess that "35% of the SPD's lifespan has been consumed." This provides a scientific basis for maintenance cycles based on actual stress rather than fixed time intervals, enabling true condition-based maintenance.

3. Integration with environmental data: From isolated alarms to systemic risk insights

Combining local data from the SPD with broader environmental data (such as regional lightning activity from lightning location systems and ambient temperature and humidity) can generate significant value at the system level.

Root Cause Analysis and Risk Assessment: If multiple SPDs on the same power distribution circuit simultaneously record a high-energy surge event, combined with lightning data, the event can be accurately identified as an external lightning strike and its severity assessed. Conversely, if only one SPD frequently records low-energy but abnormal overvoltages, it may indicate insulation problems or operational overvoltages in the equipment on that branch circuit (such as motors or inverters), thus allowing for the early detection of potential equipment failures.
